Touch Switch
VL-C7F2W-2BP
Color
Series
C7 EU Standard
C9 US/AU Standard
A8 US Standard
B6 UK Standard
Panel Type
Full Glass
Frame glass
Switch Button
1 Gang 2P
2 Gang 4P
3 Gang 6P
4 Gang 8P
5 Gang 10P
Function
Switch
Curtain Motor
Smart
Basic
Wi-Fi
EC
2 Way
1 Way
2 Way
Advantages
Glass touch controlsNeutral & Live Wire Power SupplyElegant hotel-style designModern DesignEasy to useBreathing LED Indicator
Product Description
Effortlessly control your home's curtains with Livolo's C7 Curtain Switch. This elegant black glass touch panel integrates seamlessly into your daily routine, allowing one-touch operation of motorized curtains. Whether you're waking up to natural light or creating a cozy movie night atmosphere, simply tap to open or close. The neutral and live wire power supply ensures reliable performance, while the two-color LED indicator and buzzer provide clear status feedback. Perfect for modern smart home setups, this switch adds convenience and style to any room, blending with your décor and simplifying life.

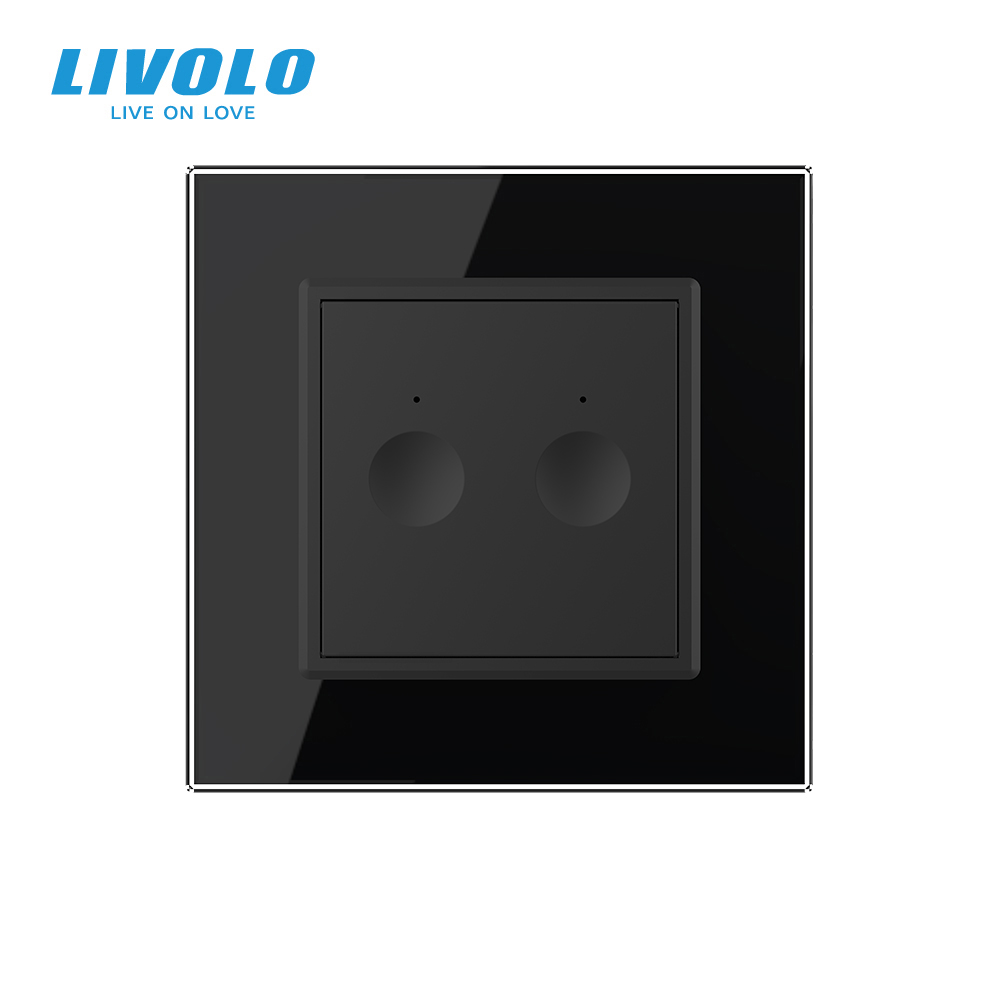

Touch Switch_front_view

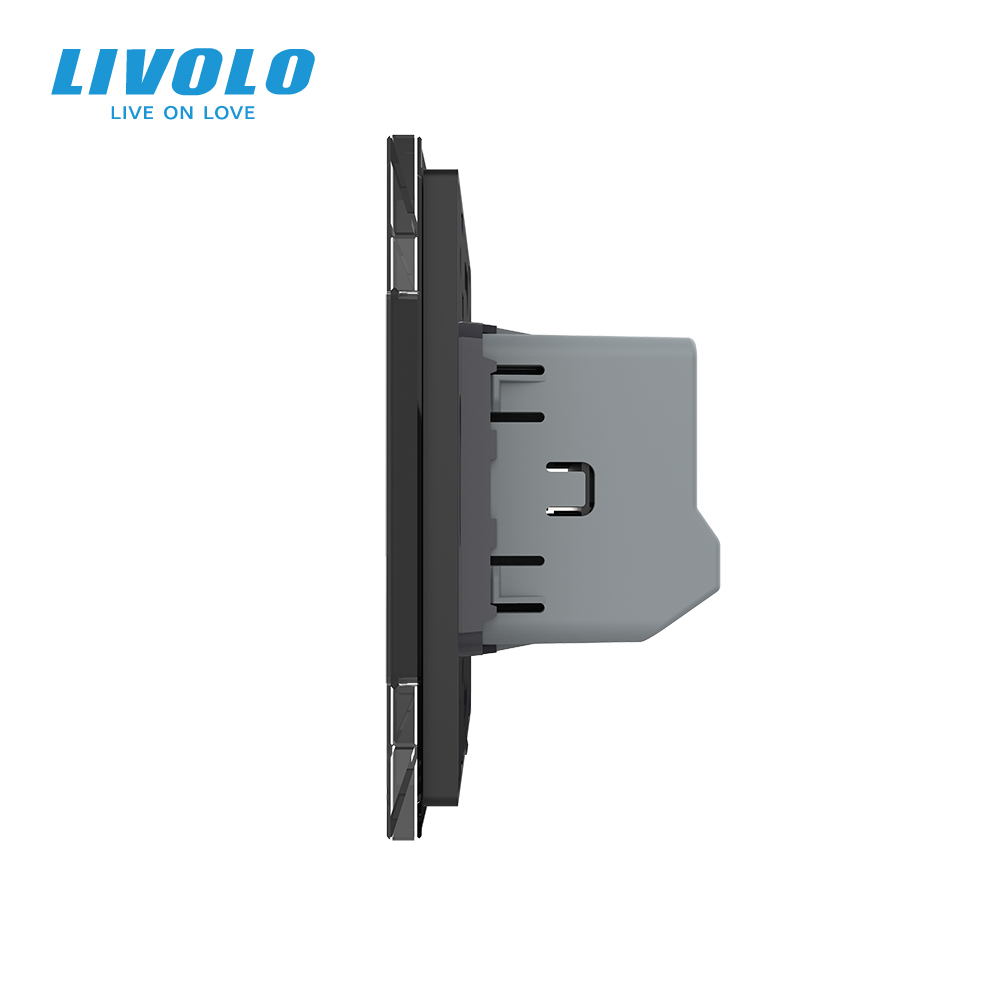

Touch Switch_slide_view

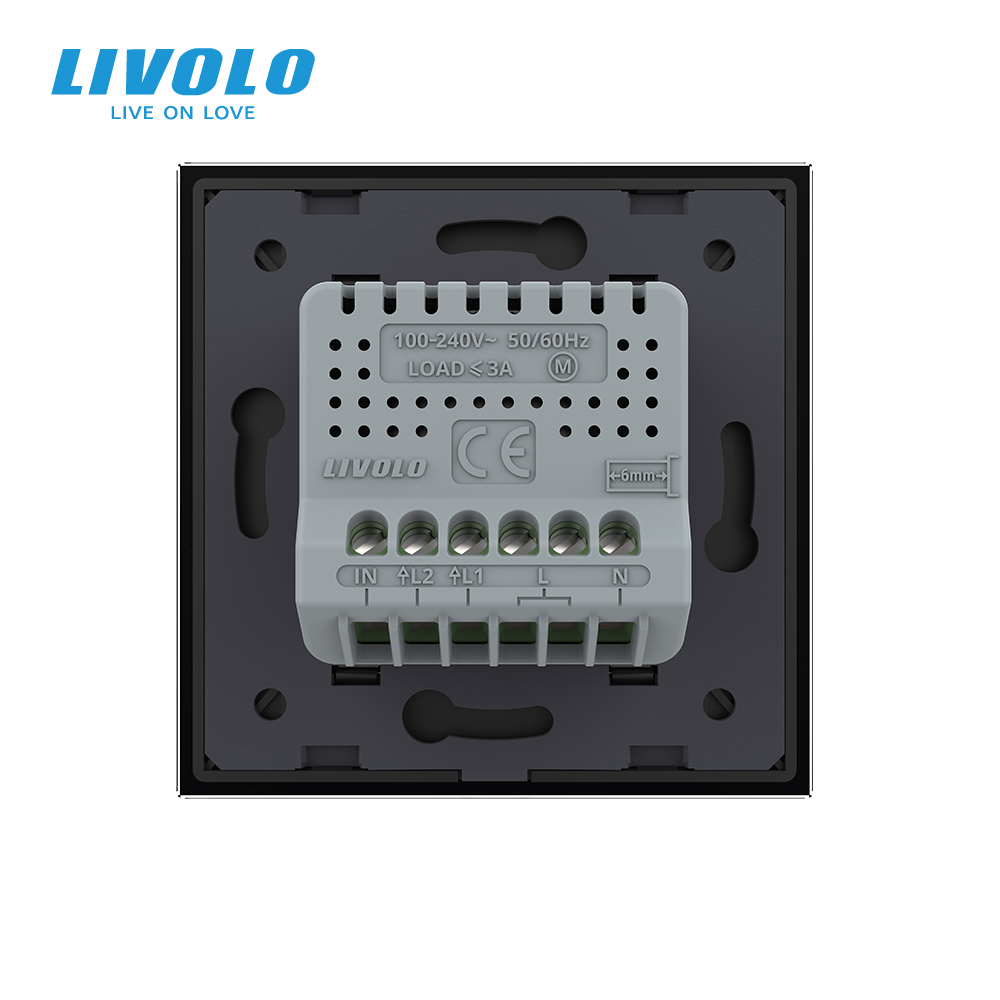

Touch Switch_back_view
Product Composition
• LIVOLO | C7 1-Gang 2-Position Black Panel
x1
• LIVOLO | C7 2-Gang 2-Button Curtain Motor Module (Neutral & Live, Glass, Center Wire)
x1
Technical Specifications
Brand
LIVOLO
Series
C7 EU Standard
Panel Style
Frame glass
Gang/Position
1 Gang 2P
Way
1 Way
Smart Type
Basic
Function
Curtain Motor
Material
Tempered Glass
Panel Dimension
80mm × 80mm × 8mm
Dimension
46.5*46.5*36.75mm
Voltage
Neutral and live line power supply 100Vac~240Vac 50/60Hz
Status indicator
Two-color LED light + buzzer
Maximum load
3A
Temperature and humidity
-10℃ ~ +40℃
Longevity
100,000 times
2 way function
×
Flame retardant shell
V-0
Installation Orientation
Horizontal/Vertical
Panel Color
Black
Compatible with standard round or square wall boxes
All products require installation in round/square wall boxes with a minimum depth of 40mm.
