Touch Switch
VL-C7F2SZ2-2IP
Color
Series
C7 EU Standard
C9 US/AU Standard
A8 US Standard
B6 UK Standard
Panel Type
Full Glass
Frame glass
Switch Button
1 Gang 2P
2 Gang 4P
3 Gang 6P
4 Gang 8P
5 Gang 10P
Function
Switch
Curtain Motor
Smart
Basic
Wi-Fi
EC
2 Way
1 Way
2 Way
Advantages
Glass touch controlsSmart HomeRemote control by phoneEasy to useModern DesignBreathing LED IndicatorElegant hotel-style designTime Schedule Programming
Product Description

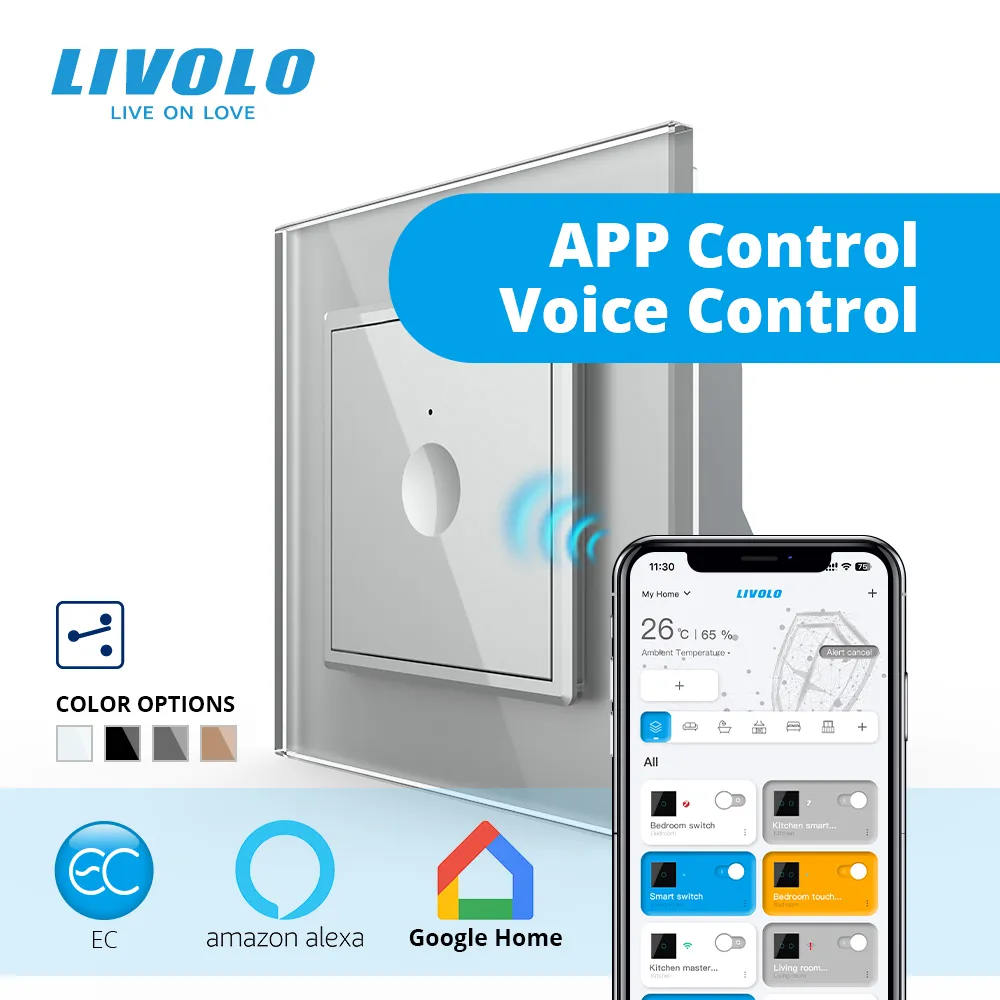

Imagine coming home after a long day and tapping your LIVOLO Gray Touch Switch to bathe your living room in a warm, welcoming light. With smart home integration, you can control your lights remotely via your phone, ensuring you never arrive to a dark house. The elegant tempered glass panel blends seamlessly with your modern decor, while the 2-way control lets you operate the same light from two locations—ideal for hallways or staircases. Safety features like overload protection and a built-in buzzer provide peace of mind. This switch fits effortlessly into your daily routine, enhancing comfort and convenience at your fingertips.
Touch Switch_front_view
Touch Switch_slide_view
Touch Switch_back_view
Product Composition
• LIVOLO | C7 Gray 1-Gang Panel for 2-Button Switch
x1
• LIVOLO | 2-Gang 2-Way Touch EC Gray Function Module | Small Face (Neutral Wire)
x1
Technical Specifications
Brand
LIVOLO
Series
C7 EU Standard
Panel Style
Frame glass
Gang/Position
1 Gang 2P
Way
2 Way
Smart Type
EC
Function
Switch
Material
Tempered Glass
Panel Dimension
80mm × 80mm × 8mm
Dimension
Full glass touch switch: 46.5*46.5*38.75mm 69.6*47*28.9mm Modular touch switch: 45.1*45.1*42.6mm
Voltage
100-240V~ 50/60Hz
Status indicator
Two-color LED light + buzzer
Temperature and humidity
-10℃ - +40℃
Minimum load
5W
Load
5A/each gang, total no more than 10A
Flame retardant shell
Longevity
100,000 times
Two way function
Y-O
Installation Orientation
Horizontal/Vertical
Panel Color
Gray
Compatible with standard round or square wall boxes
All products require installation in round/square wall boxes with a minimum depth of 40mm.
