Touch Switch
VL-C901S-3AG
Color
Series
C7 EU Standard
C9 US/AU Standard
A8 US Standard
B6 UK Standard
Panel Type
Full Glass
Frame glass
Switch Button
1 Gang 2P
1 Gang 3P
1 Gang 4P
1 Gang 7P
2 Gang 6P
Function
Switch
Curtain Motor
Smart
Basic
Wi-Fi
EC
2 Way
1 Way
2 Way
Advantages
Glass touch controlsBreathing LED IndicatorModern DesignEasy to useLong-lasting Power
Product Description
Elevate your home with the LIVOLO C9 gold full glass touch switch, designed to blend seamlessly into sophisticated interiors. Its smooth glass panel responds to a gentle touch, turning lights on or off effortlessly, while the built-in two-color LED indicator provides clear status feedback with a soft glow. Perfect for hallways or staircases, the two-way control allows you to operate the same light from two locations, adding convenience to daily routines. The tempered glass surface is easy to clean and resists fading, ensuring lasting elegance. This basic smart switch integrates smoothly into your existing setup without complex wiring, offering reliable performance and peace of mind. Experience the comfort of modern, intuitive control that enhances your living space.

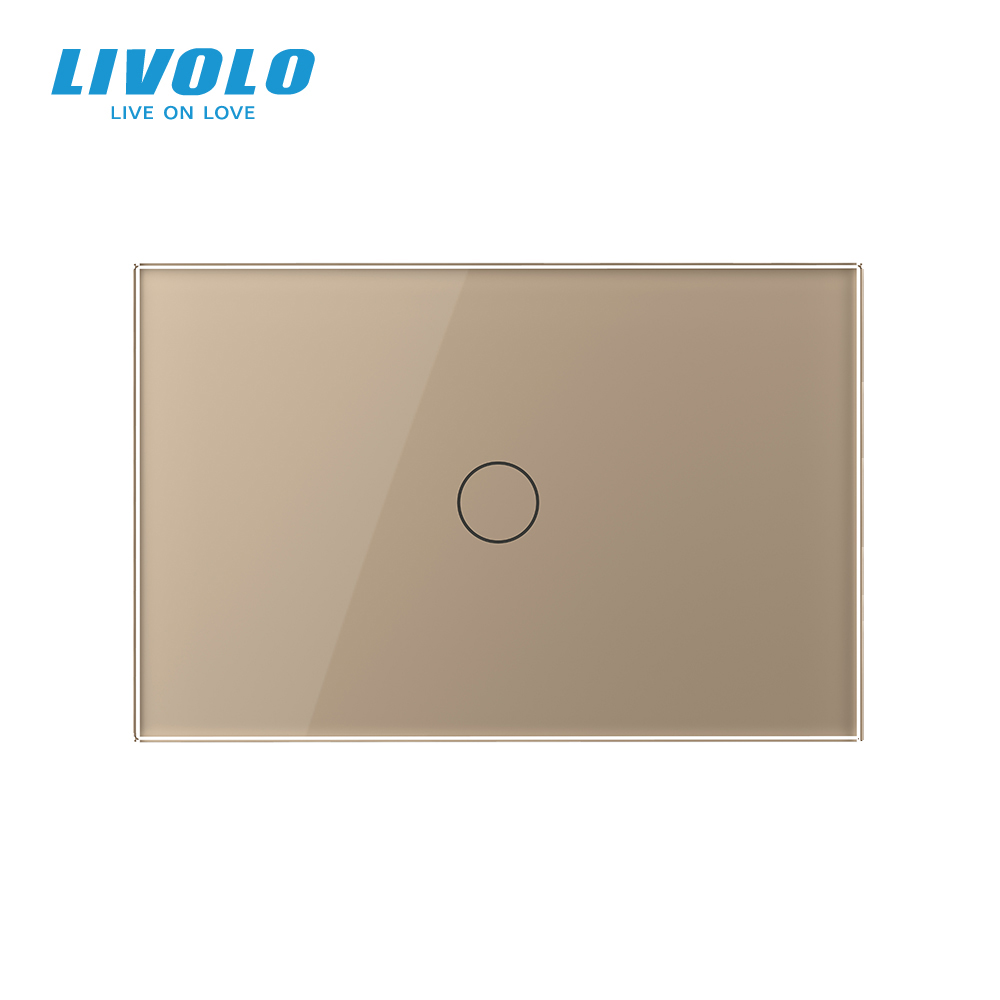

Touch Switch_front_view

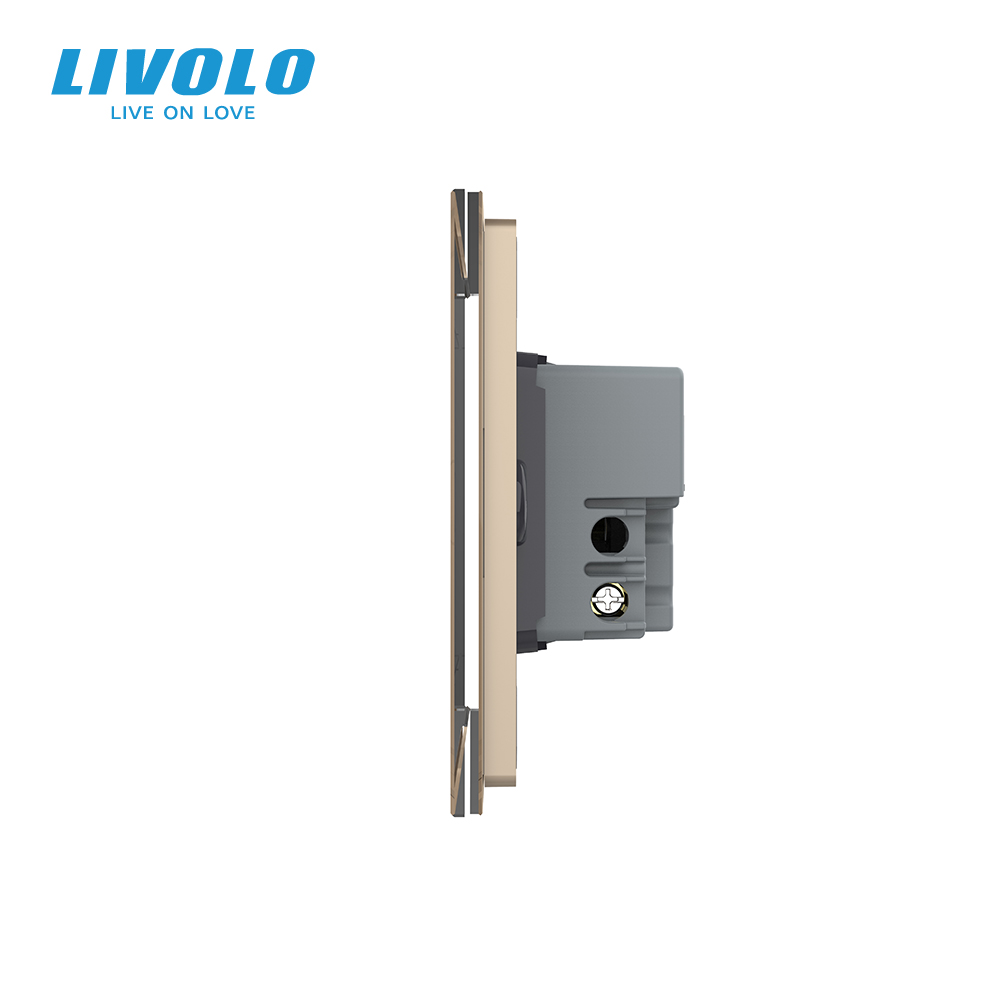

Touch Switch_slide_view

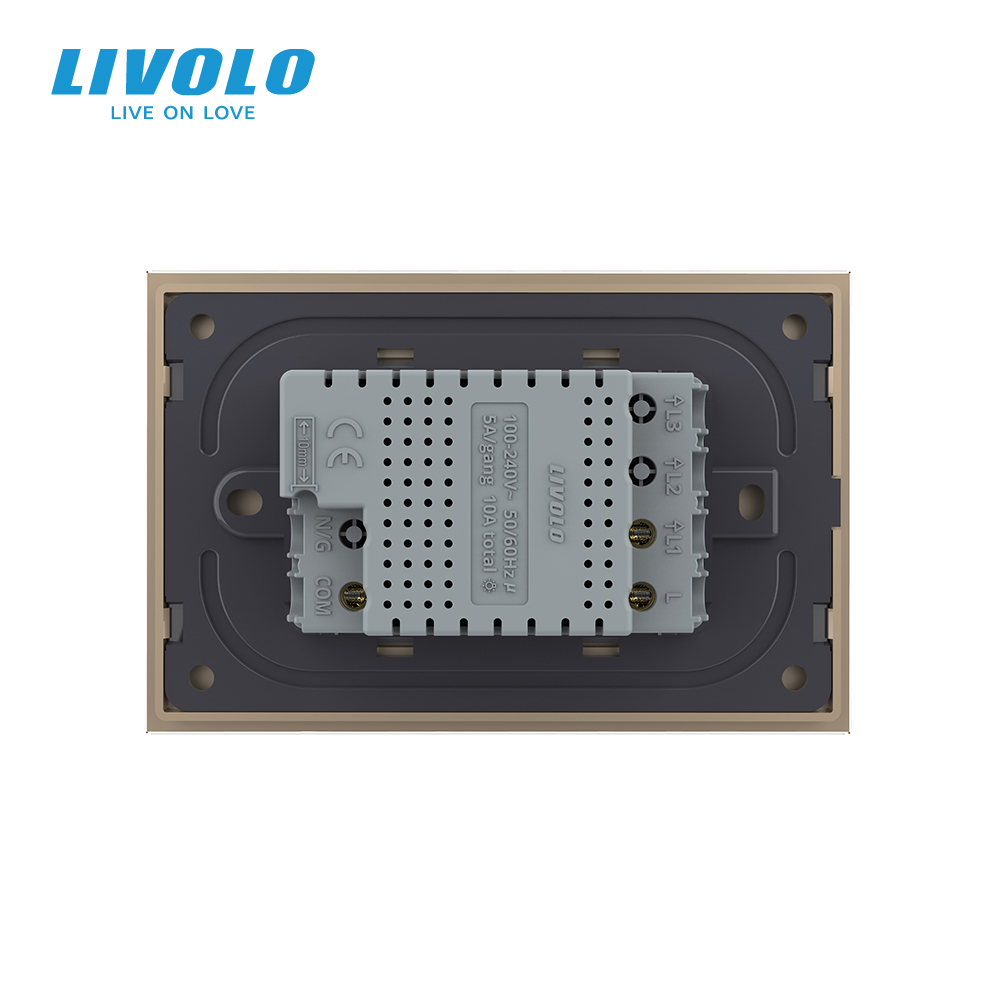

Touch Switch_back_view
Product Composition
• LIVOLO | C9 1-Gang 1-Touch Gold Panel
x1
• LIVOLO | 1-Position 1-Gang 2-Way Touch Gold Function Module
x1
Technical Specifications
Brand
LIVOLO
Series
C9 US/AU Standard
Panel Style
Full Glass
Gang/Position
1 Gang 3P
Way
2 Way
Smart Type
Basic
Function
Switch
Material
Tempered Glass
Panel Dimension
119mm × 78mm × 8mm
Dimension
Full glass touch switch: 46.5*46.5*38.75mm 69.6*47*28.9mm Modular touch switch: 45.1*45.1*42.6mm
Voltage
100-240V~ 50/60Hz
Status indicator
Two-color LED light + buzzer
Temperature and humidity
-10℃ - +40℃
Minimum load
5W
Load
5A/each gang, total no more than 10A
Flame retardant shell
Longevity
100,000 times
Two way function
Y-O
Installation Orientation
Horizontal/Vertical
Panel Color
Gold
Compatible with standard round or square wall boxes
All products require installation in round/square wall boxes with a minimum depth of 40mm.
