Touch Switch
VL-A8F1S-3WP
Color
Series
C7 EU Standard
C9 US/AU Standard
A8 US Standard
B6 UK Standard
Panel Type
Full Glass
Frame glass
Switch Button
1 Gang 2P
1 Gang 3P
3 Gang 6P
4 Gang 8P
Function
Switch
Curtain Motor
Smart
Basic
Wi-Fi
EC
2 Way
1 Way
2 Way
Advantages
Glass touch controlsBreathing LED IndicatorModern DesignEasy to useSmart Home
Product Description
Transform your home's lighting control with the LIVOLO A8 White Touch Switch, featuring a sleek tempered glass panel that blends seamlessly into any modern décor. Designed for everyday comfort, this dual-control switch allows you to operate your lights from two locations—perfect for hallways, staircases, or bedrooms. The gentle two-color LED indicator provides a subtle breathing glow, making it easy to locate the switch in the dark while adding a touch of elegance to your space. With its intuitive touch controls and robust safety features like a flame-retardant shell, the A8 offers both convenience and peace of mind. Embrace the smart home lifestyle with a switch that prioritizes simplicity and style, enhancing your daily routines without complexity.

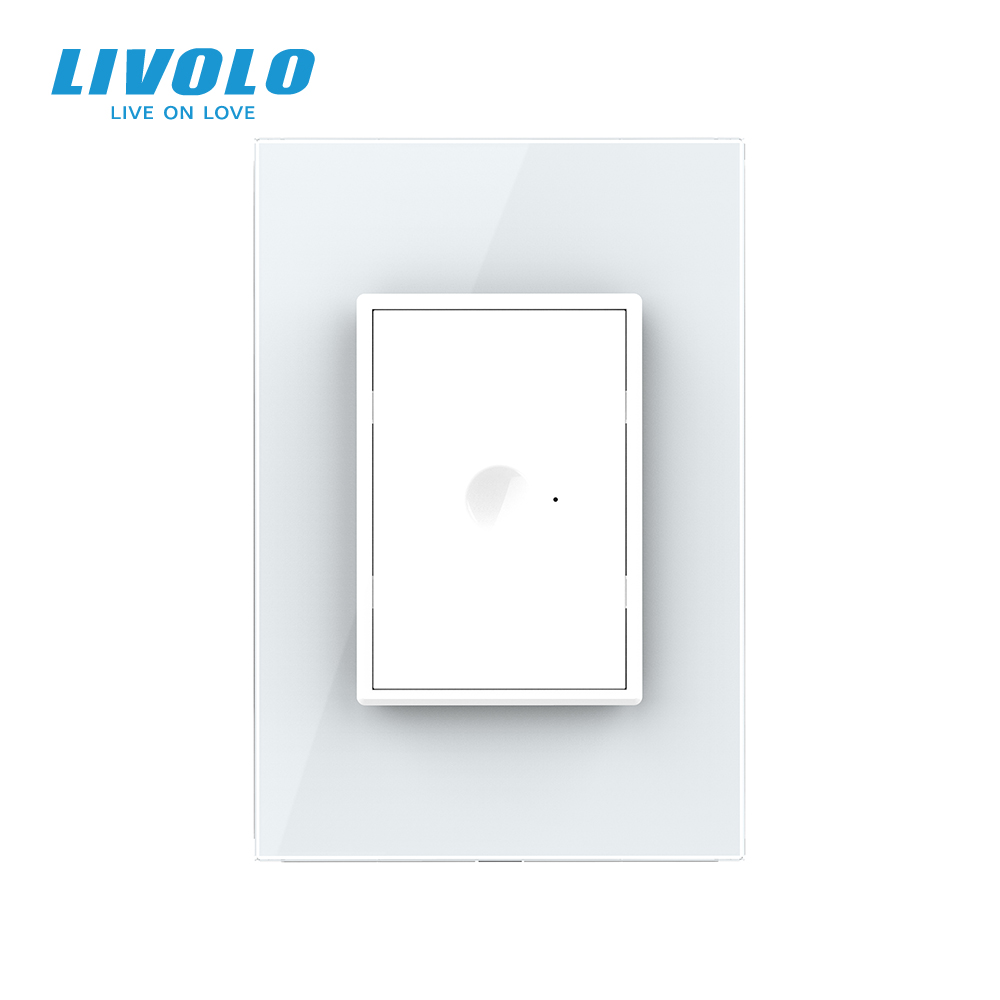

Touch Switch_front_view

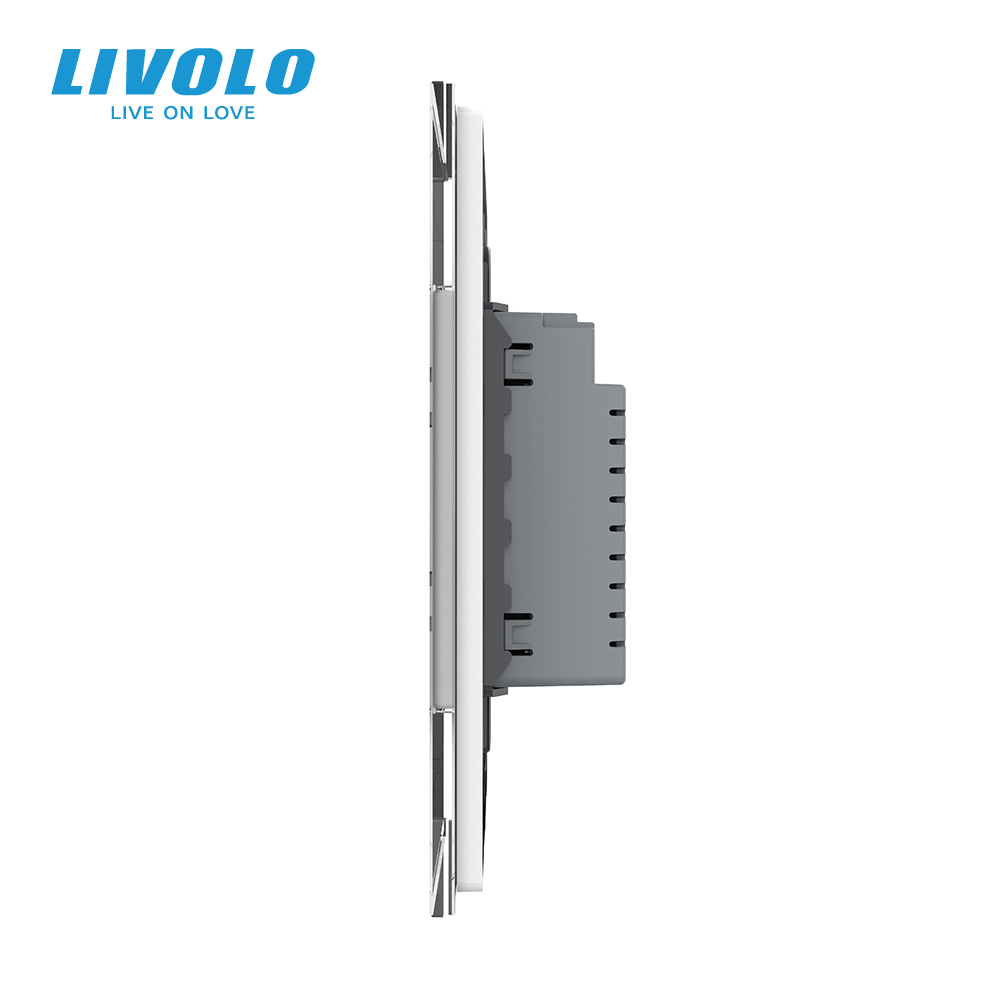

Touch Switch_slide_view

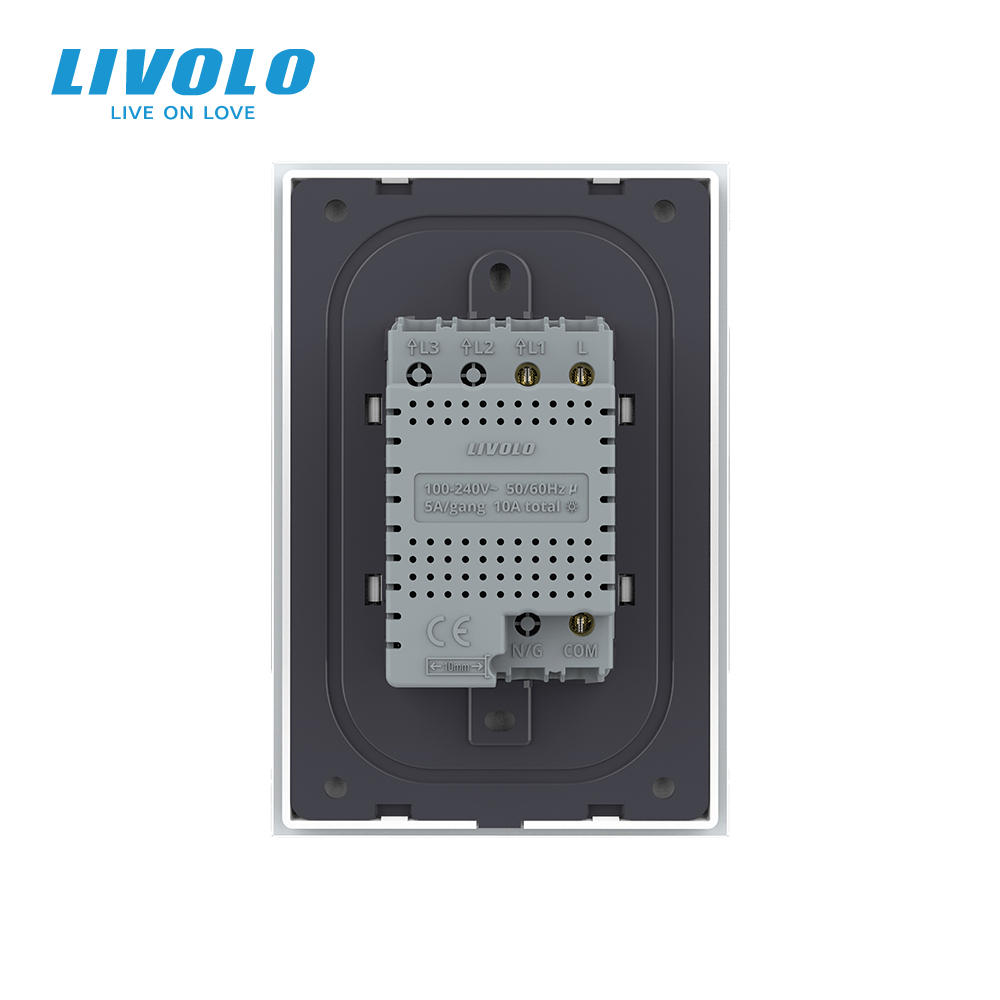

Touch Switch_back_view
Product Composition
• LIVOLO | A8 1-Gang 3-Position White Frame Glass Touch Panel
x1
• LIVOLO | 3-Position 1-Gang 2-Way White Functional Module
x1
Technical Specifications
Brand
LIVOLO
Series
A8 US Standard
Panel Style
Frame glass
Gang/Position
1 Gang 3P
Way
2 Way
Smart Type
Basic
Function
Switch
Material
Tempered Glass
Panel Dimension
130mm × 88mm × 8mm
Dimension
Full glass touch switch: 46.5*46.5*38.75mm 69.6*47*28.9mm Modular touch switch: 45.1*45.1*42.6mm
Voltage
100-240V~ 50/60Hz
Status indicator
Two-color LED light + buzzer
Temperature and humidity
-10℃ - +40℃
Minimum load
5W
Load
5A/each gang, total no more than 10A
Flame retardant shell
Longevity
100,000 times
Two way function
Y-O
Installation Orientation
Horizontal/Vertical
Panel Color
White
