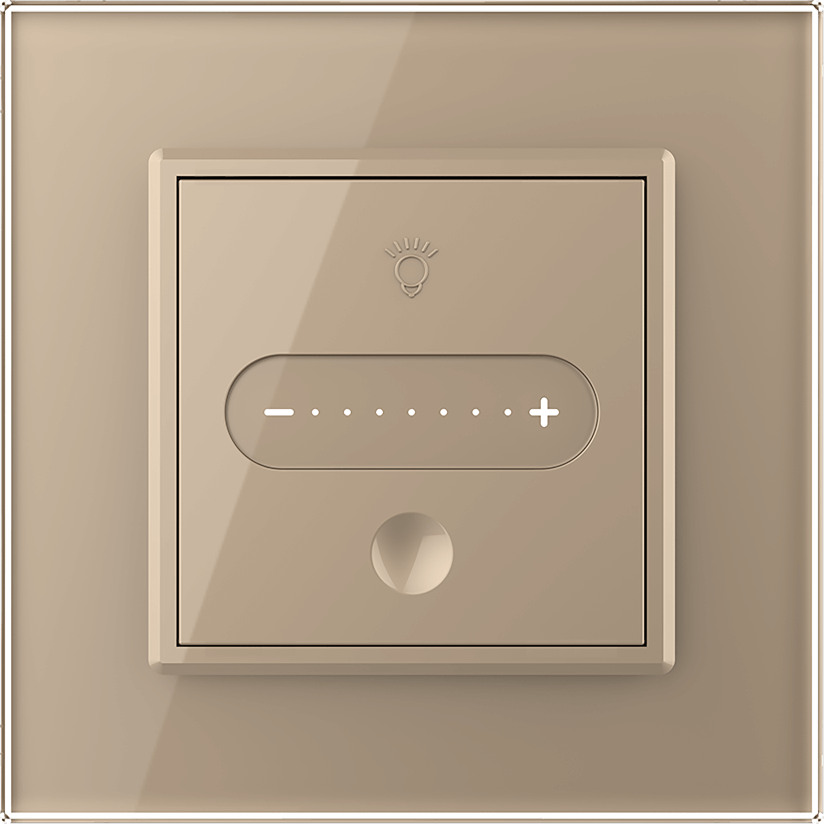

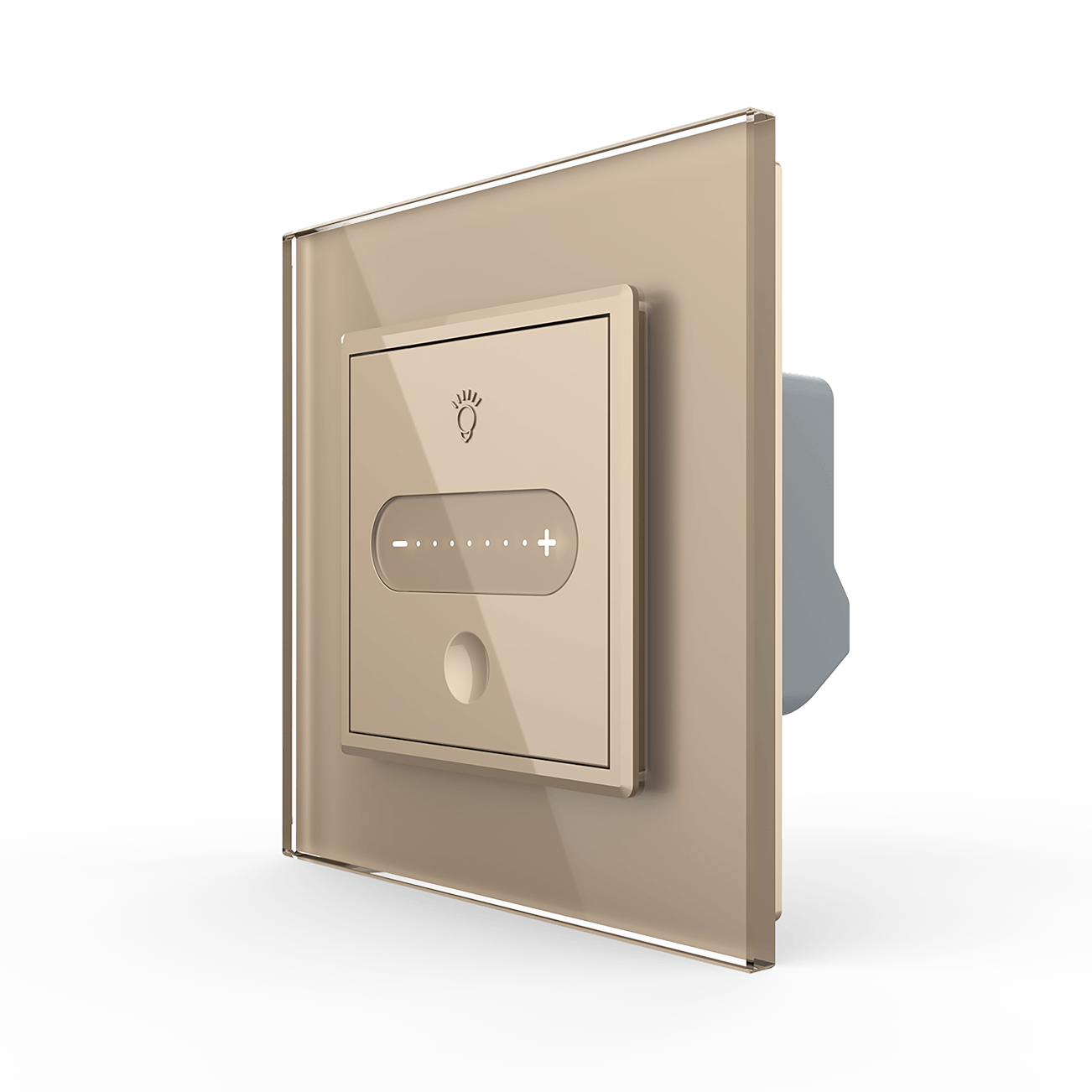

Smart Slide Dimmer Switch
VL-P7E-2A1x VL-FC1SDZ2-2AP
Color
Advantages
Directly available from stockGlass touch controlsBrightness AdjustmentSlide ControlBreathing LED IndicatorSingle Live Wire Technology
Product Description
The fingertips slide gently on the super-sensitive glass, just like plucking the strings of light - from 1% like the faint light of fireflies to 100% like the clear light of the full moon, every degree of brightness change is like silk brushing against the skin. The hidden LED light guide layer emits a star-shaped breathing light when the screen is off, and the screen instantly turns into a suspended brightness scale, accurately capturing every inch of fingertip displacement. Equipped with EC networking and multi-platform scenario programming, from the 2700K reading warm light in the early morning to the fading light in the cinema mode. When the switch retreats to a sculpture of light, the light and dark layers grow a breathing rhythm on the wall, making every slide a poetic dialogue with the light and shadow of the space.



Product Composition
• LIVOLO | Panel | Gold | Single frame glass panel
x1
• LIVOLO | Module | Gold | 1 gang slide dimmer switch
x1
Technical Specifications
Brand
LIVOLO
Control Method
Touch Control
Operation Type
Short Press On/Off, Slide or Press +- Button to Dimming
Switch Button
1 Gang
Panel Color
Gold
Material
Tempered Glass
Backlight
White LED
Dimensions
80 x 80 x 4mm
Installation Depth
28mm
Voltage
100-240V AC, 50/60Hz
Neutral Wire Required
No
Compatibility
Dimmable LED & Halogen Lighting
Max Current
2A
Min Load
>5W
Max Load
<440W@220Vac
Relative Humidity
95% RH
Operating Temperature
-10℃ to +40℃
Wall Box Type
Round/Square (Mounting Hole 60mm)
Applicable to
Single Wall Box
Installation Orientation
Horizontal/Vertical
Compatible with standard round or square wall boxes
All products require installation in round/square wall boxes with
a minimum depth of 40mm.
