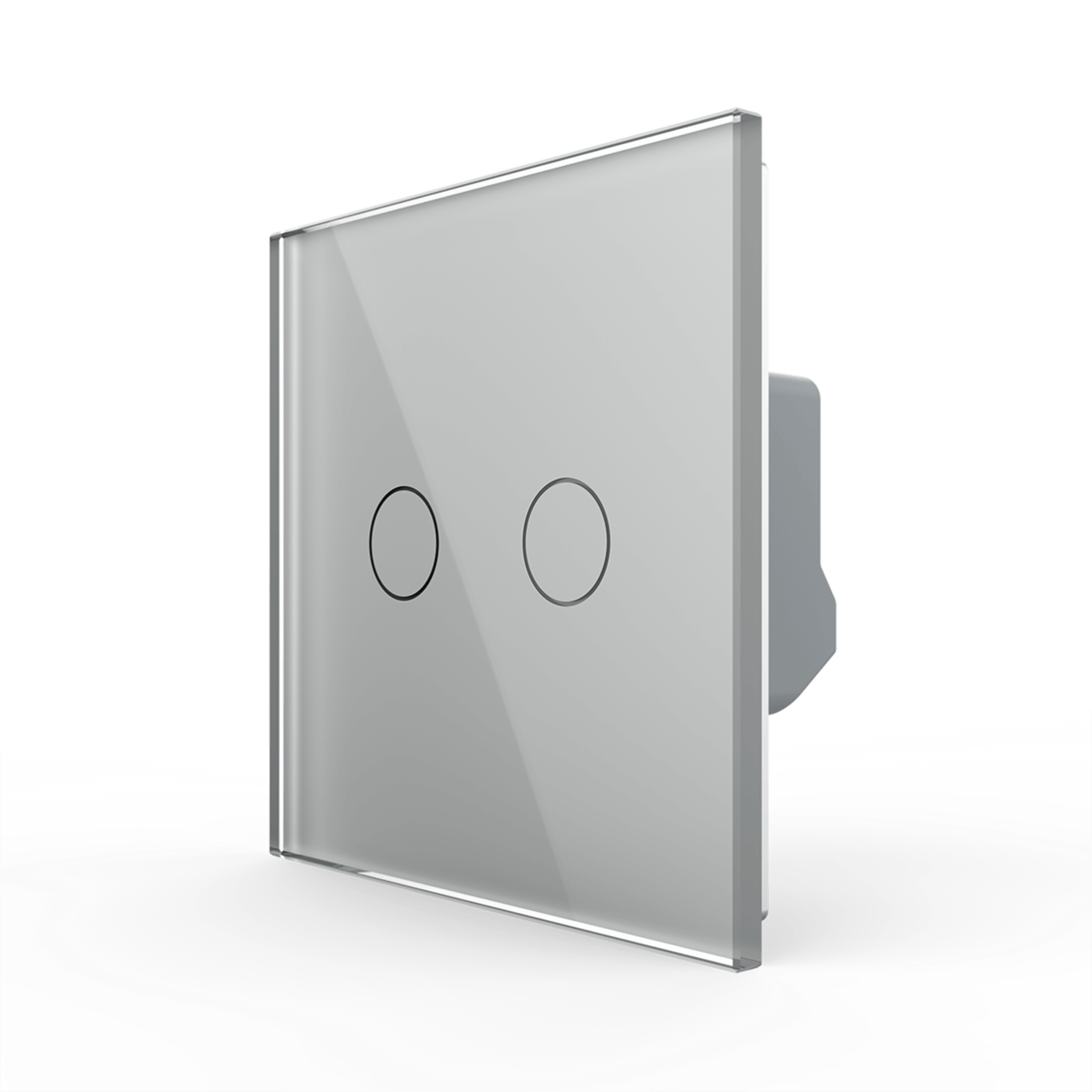

Full Panel Touch Switch
VL-P702-2I1x VL-FC2-2GSVM
Color
Switch Button
1 Gang
2 Gang
2 Way
1 Way
2 Way
Smart
Basic
EC
Wi-Fi
Function
Touch
Dimmer
Adaptive Dimmer
Curtain
Doorbell
Advantages
Directly available from stockGlass touch controlsEasy to useIntegrated LED backlightElegant hotel-style design
Product Description
LIVOLO's diamond-cut glass panel revolutionizes traditional switch design with its frame minimalism, embodying the artistic blank space in modern interiors. At the slightest touch, the LED smart light track responds instantly—cold blue transitions to warm red upon activation, use technology algorithms to create light and shadow scripts for spatial moods. Combining millisecond responsiveness with ultra-low standby power, its diamond-cut edges guide users with subtle nightlight illumination. From morning reading to midnight ambiance, LIVOLO redefines home control through tactile interaction, transforming every touch into an evolutionary moment for spatial aesthetics.
Product Composition
• LIVOLO | Panel | Gray | 2 way touch glass panel
x1
• LIVOLO | Module | 1 way single live wire switch
x1
Technical Specifications
Brand
LIVOLO
Control Method
Touch Control
Operation Type
Short Press On/Off
Switch Button
2 Gang
Panel Color
Gray
Material
Tempered Glass
Backlight
Red/Blue LED
Dimensions
80 x 80 x 4mm
Installation Depth
28mm
Voltage
100-240V AC, 50/60Hz
Neutral Wire Required
No
Compatibility
LED & Halogen Lighting
Max Current
5A/each gang,total no more than 10A
Min Load
>5W
Max Load
<1100W@220Vac
Relative Humidity
95% RH
Operating Temperature
-10℃ to +40℃
Wall Box Type
Round/Square (Mounting Hole 60mm)
Applicable to
Single Wall Box
Installation Orientation
Horizontal/Vertical
Compatible with standard round or square wall boxes
All products require installation in round/square wall boxes with a minimum depth of 40mm.
