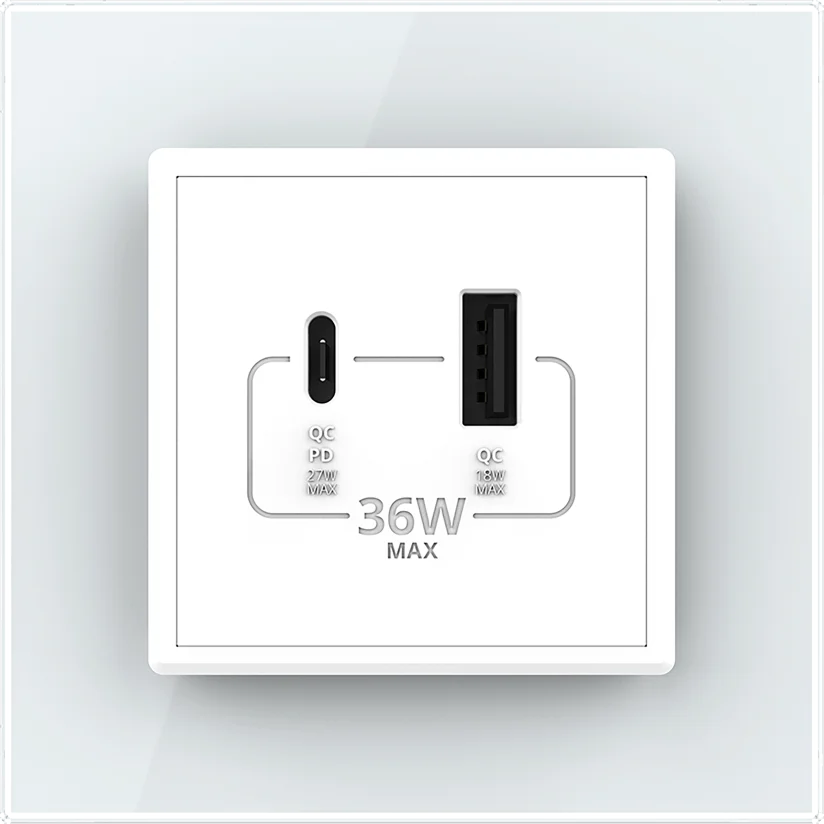

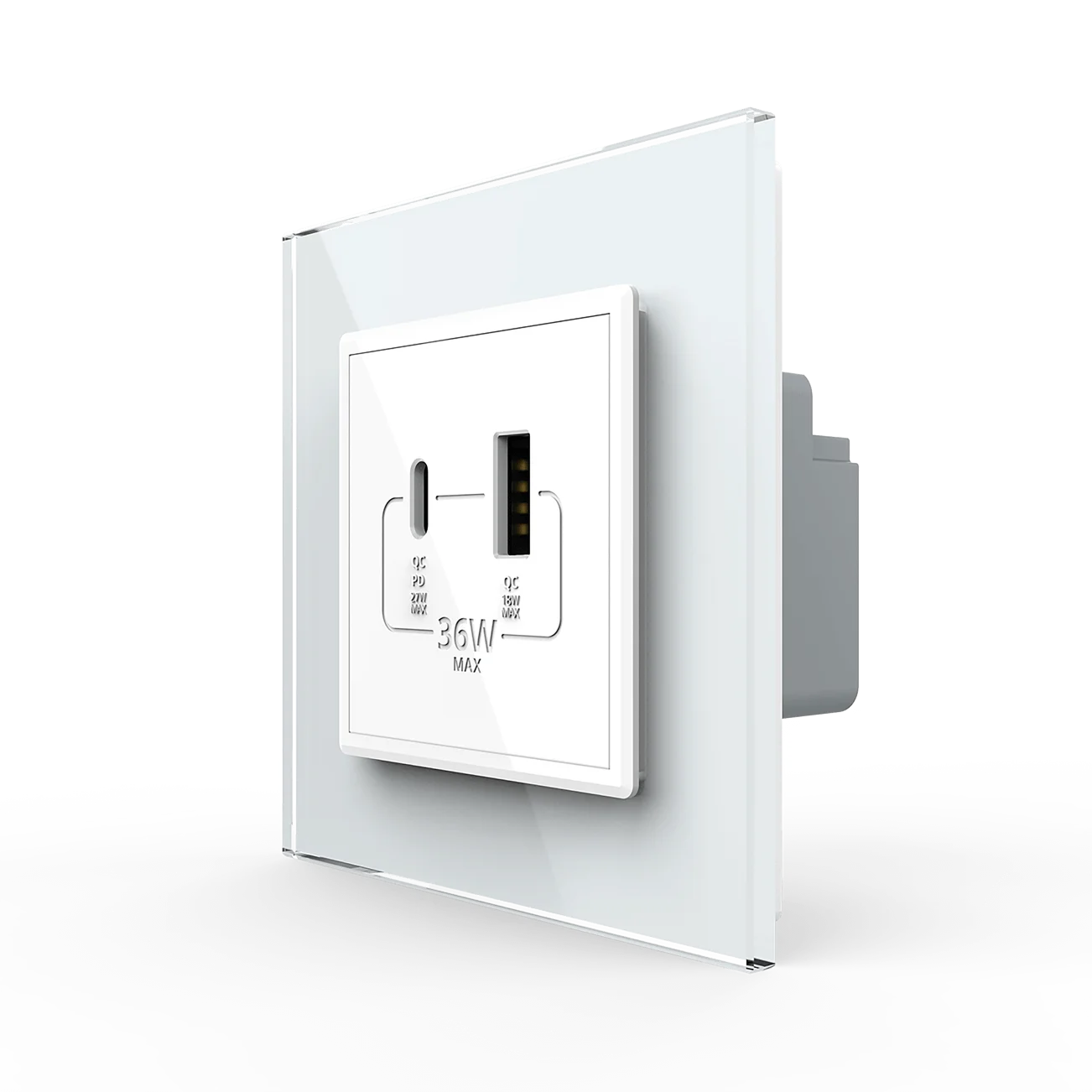

USB-1A1C 36W Socket
VL-P7E-2W1x VL-FCUA18W.UC18W-2WPS24
Color
Advantages
Directly available from stockGlass touch controls36W Fast ChargingFull Protocol SupportDual Ports 1A1CModern Design
Product Description
The LIVOLO 36W ultra-fast charging socket is carved with three-dimensional crystal lines using diamond cutting technology. The tempered glass panel and frosted body collide to create flowing light and shadow layers, injecting the edge of rational aesthetics into modern space; its PD/QC/Huawei FCP/Samsung AFC/Apple protocol fully compatible core can intelligently identify device requirements in milliseconds, dynamically match 5V3A to 12V2.2A power peaks, and provide 36W fast charging for mobile phones, tablets and other devices. At the same time, it relies on the PC flame-retardant base and high-temperature protection to build a double safety line; the frameless embedded design breaks the boundaries of traditional socket forms, and the minimalist outline is suitable for multiple scenes such as office desks, home bedsides, and coffee shops, making the charging experience like an invisible art installation.
Product Composition
• LIVOLO | Panel | White | Single frame glass panel
x1
• LIVOLO | Module | White | 36W USB-1A1C socket
x1
Technical Specifications
Brand
LIVOLO
Panel Color
White
Material
PC Flame-Retardant Material
Dimensions
80 x 80 x 4mm
Installation Depth
32mm
Voltage
100-240V AC, 50/60Hz
Neutral Wire Required
Yes
Rated output for type-c
A: 5V/3A, 9V/2A, 12V/1.5A C: 5V/3A, 9V/3A, 12V/2.2A
Protocol
Supports PD, QC, FCP, AFC, APPLE 5V/2.4A, BC1.2 DCP
Relative Humidity
95% RH
Operating Temperature
-10℃ to +40℃
Wall Box Type
Round/Square (Mounting Hole 60mm)
Applicable to
Single Wall Box
Installation Orientation
Horizontal/Vertical
Compatible with standard round or square wall boxes
All products require installation in round/square wall boxes with a minimum depth of 40mm.
