Touch Switch
VL-A8F1S-3BP
Color
Series
C7 EU Standard
C9 US/AU Standard
A8 US Standard
B6 UK Standard
Panel Type
Full Glass
Frame glass
Switch Button
1 Gang 2P
1 Gang 3P
3 Gang 6P
4 Gang 8P
Smart
Basic
Wi-Fi
EC
2 Way
1 Way
2 Way
Function
Switch
Curtain Motor
Advantages
Glass touch controlsModern DesignEasy to useElegant hotel-style designBreathing LED IndicatorSingle Live Wire Technology
Product Description
Elevate your daily routine with the LIVOLO A8 black glass touch switch, a seamless blend of style and practicality. Perfect for living rooms, bedrooms, or hallways, this 2-way switch lets you control lighting from two locations, adding convenience to your home. The elegant tempered glass panel integrates effortlessly into modern interiors, while the gentle breathing LED indicator provides a soft glow at night, enhancing comfort without disturbing sleep. Designed for safety and durability, it withstands frequent use and is easy to clean. Whether you're dimming the lights for a movie night or turning off the main light from your bed, this switch makes everyday life simpler and more enjoyable.
Product Composition
• LIVOLO | A8 1-Gang 3-Position Black Frame Glass Touch Panel
x1
• LIVOLO | 3-Position 1-Gang 2-Way Black Functional Module
x1
Technical Specifications
Brand
LIVOLO
Series
A8 US Standard
Panel Style
Frame glass
Gang/Position
1 Gang 3P
Way
2 Way
Smart Type
Basic
Function
Switch
Material
Tempered Glass
Panel Dimension
130mm × 88mm × 8mm
Dimension
Full glass touch switch: 46.5*46.5*38.75mm 69.6*47*28.9mm Modular touch switch: 45.1*45.1*42.6mm
Voltage
100-240V~ 50/60Hz
Status indicator
Two-color LED light + buzzer
Temperature and humidity
-10℃ - +40℃
Minimum load
5W
Load
5A/each gang, total no more than 10A
Flame retardant shell
Longevity
100,000 times
Two way function
Y-O
Installation Orientation
Horizontal/Vertical
Panel Color
Black

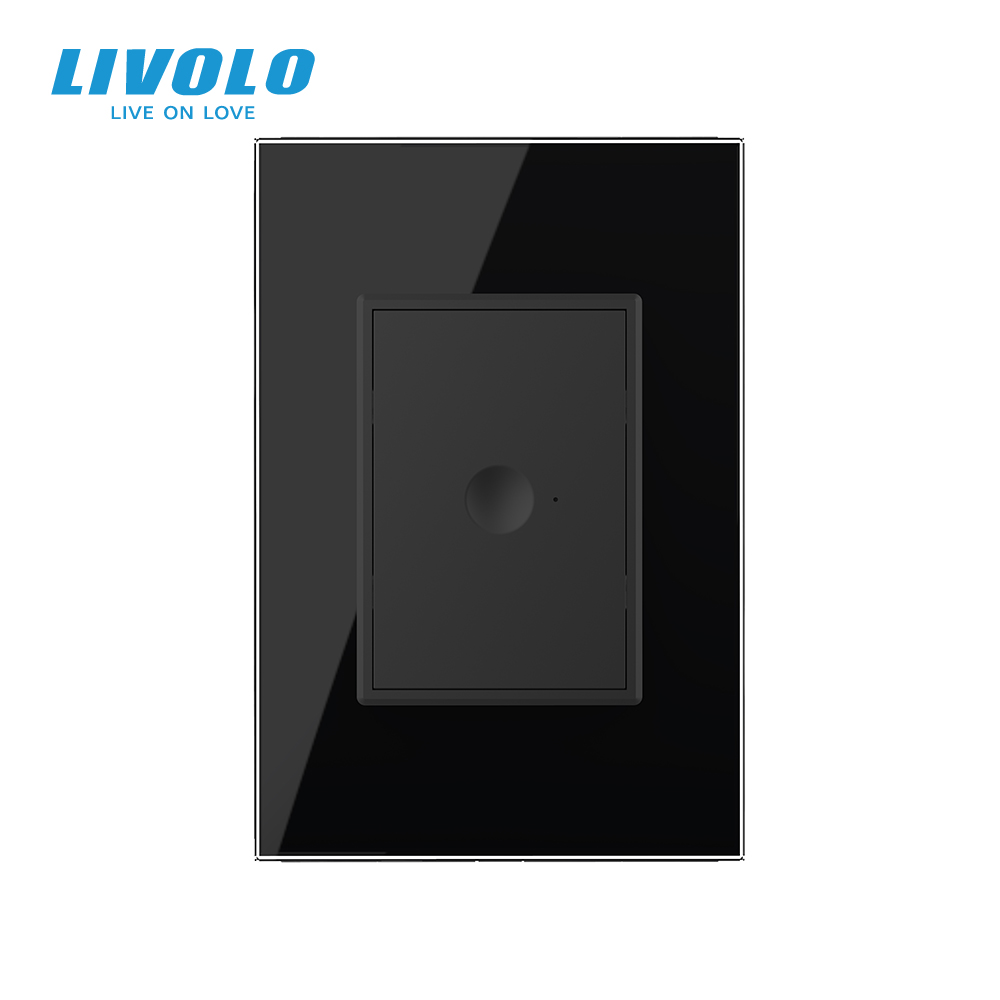

Touch Switch_front_view

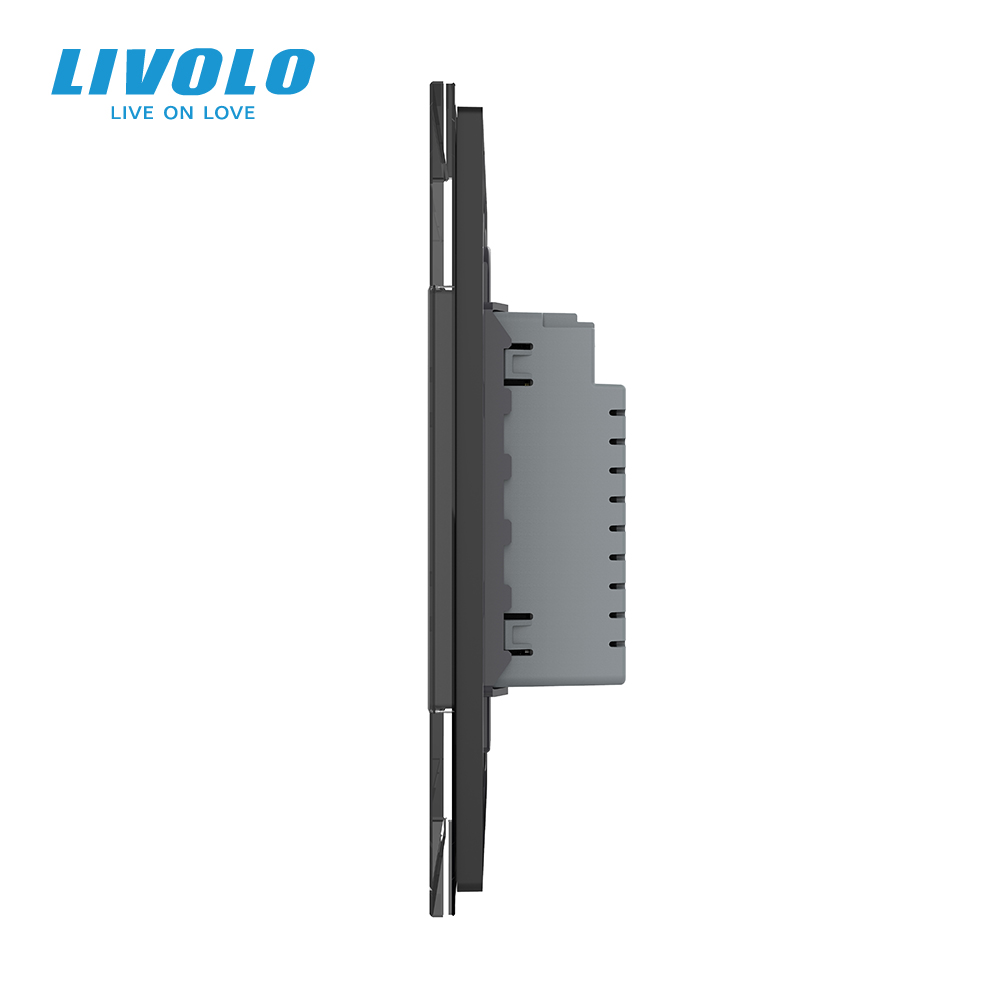

Touch Switch_slide_view

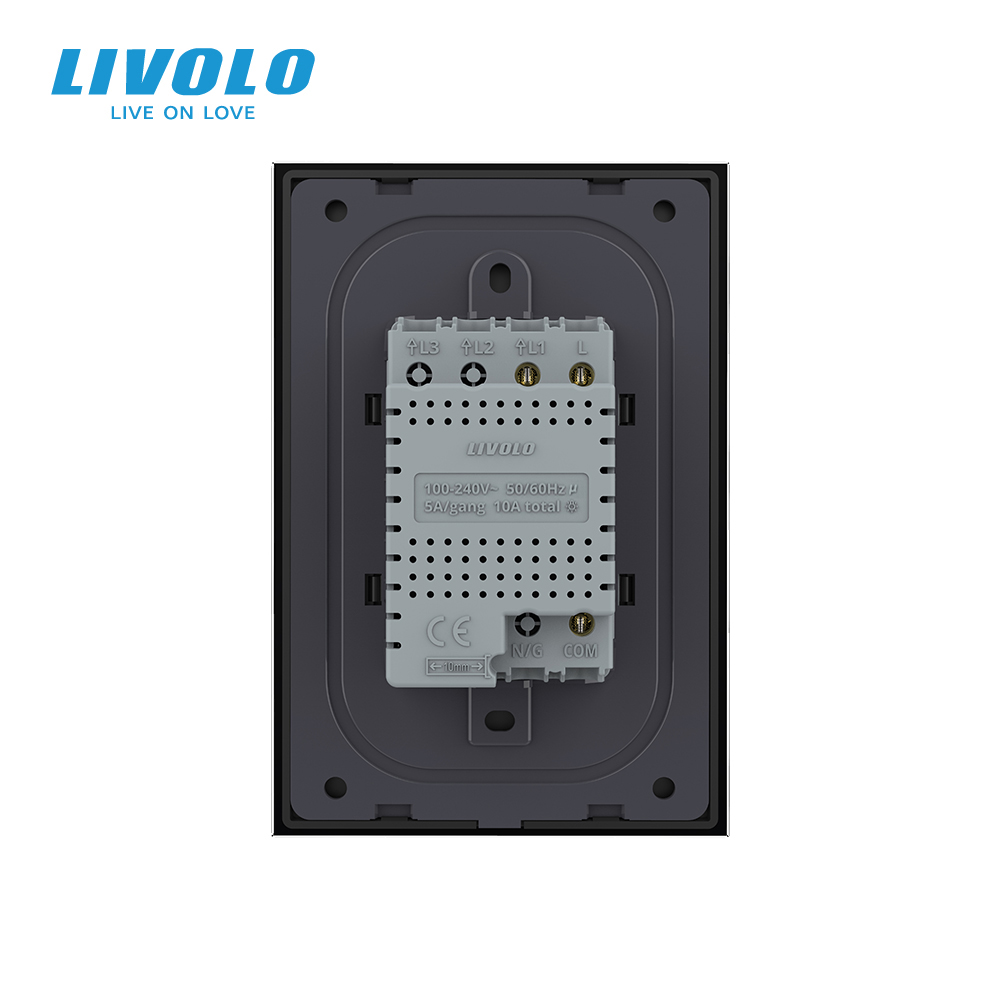

Touch Switch_back_view
