Touch Switch
VL-C9F1YS-3BP
Color
Series
C7 EU Standard
C9 US/AU Standard
A8 US Standard
B6 UK Standard
Panel Type
Full Glass
Frame glass
Switch Button
1 Gang 2P
1 Gang 3P
1 Gang 4P
1 Gang 7P
2 Gang 6P
Smart
Basic
Wi-Fi
EC
2 Way
1 Way
2 Way
Function
Switch
Curtain Motor
Advantages
Glass touch controlsSmart HomeRemote control by phoneScene LinkageEasy to useModern DesignBreathing LED IndicatorAuto-Restore After Power Outage
Product Description

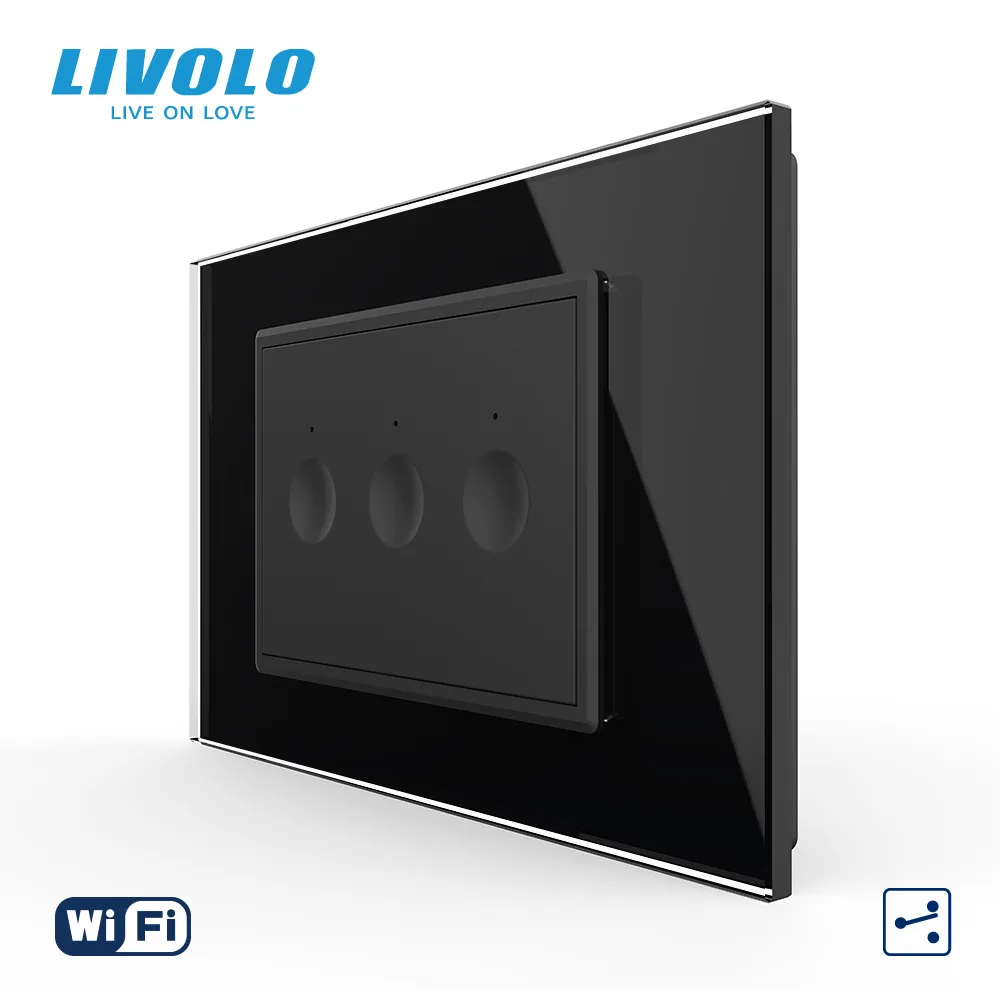

Transform your home with the LIVOLO C9 smart WiFi touch switch. This sleek black glass panel replaces ordinary switches, bringing both style and intelligence to your daily life. Use the free app to turn lights on or off from anywhere—forgot to switch off the living room light? No problem. The 2-way control works perfectly with existing wiring, letting you manage the same fixture from two locations, ideal for hallways or staircases. The gentle LED breathing indicator guides you in the dark, while scene linkage allows you to combine with other smart devices for a seamless home automation experience. Enjoy the convenience of voice control via Alexa or Google Assistant, and the peace of mind that comes with overcurrent protection and auto-restore after power outages. Modern, safe, and effortless—the C9 switch is your first step to a smarter home.
Product Composition
• LIVOLO | C9 1-Gang 3-Position Black Faceplate
x1
• LIVOLO | C9 1-Gang 2-Way WiFi Touch Switch Module (Glass)
x1
Technical Specifications
Brand
LIVOLO
Series
C9 US/AU Standard
Panel Style
Frame glass
Gang/Position
1 Gang 3P
Way
2 Way
Smart Type
Wi-Fi
Function
Switch
Material
Tempered Glass
Panel Dimension
119mm × 78mm × 8mm
Dimension
Full glass touch switch: 46.5*46.5*36.75mm Modular touch switch: 45.1*45.1*42.6mm
Voltage
100-240V~ 50/60Hz
Status indication
Two-color LED light + Buzzer
Load
5A/1 gang, total no more than 10A
Longevity
100,000 times
Temperature and humidity
-10℃ - +40℃
WiFi communication protocol
IEEE802.11 b/g/n protocol TCP/IP protocol stack
Two way function
Yes
Retardant shell
Yes
Installation Orientation
Horizontal/Vertical
Panel Color
Black
Compatible with standard round or square wall boxes
All products require installation in round/square wall boxes with a minimum depth of 40mm.
c9_box_0
Touch Switch_front_view
Touch Switch_slide_view
