Touch Switch
VL-C7F1/KMB-2AP
Color
Series
C7 EU Standard
C9 US/AU Standard
A8 US Standard
B6 UK Standard
Panel Type
Full Glass
Frame glass
Switch Button
1 Gang 2P
2 Gang 4P
3 Gang 6P
4 Gang 8P
5 Gang 10P
Smart
Basic
Wi-Fi
EC
2 Way
1 Way
2 Way
Function
Switch
Curtain Motor
Advantages
Glass touch controlsEasy to useModern DesignElegant hotel-style designBreathing LED Indicator
Product Description

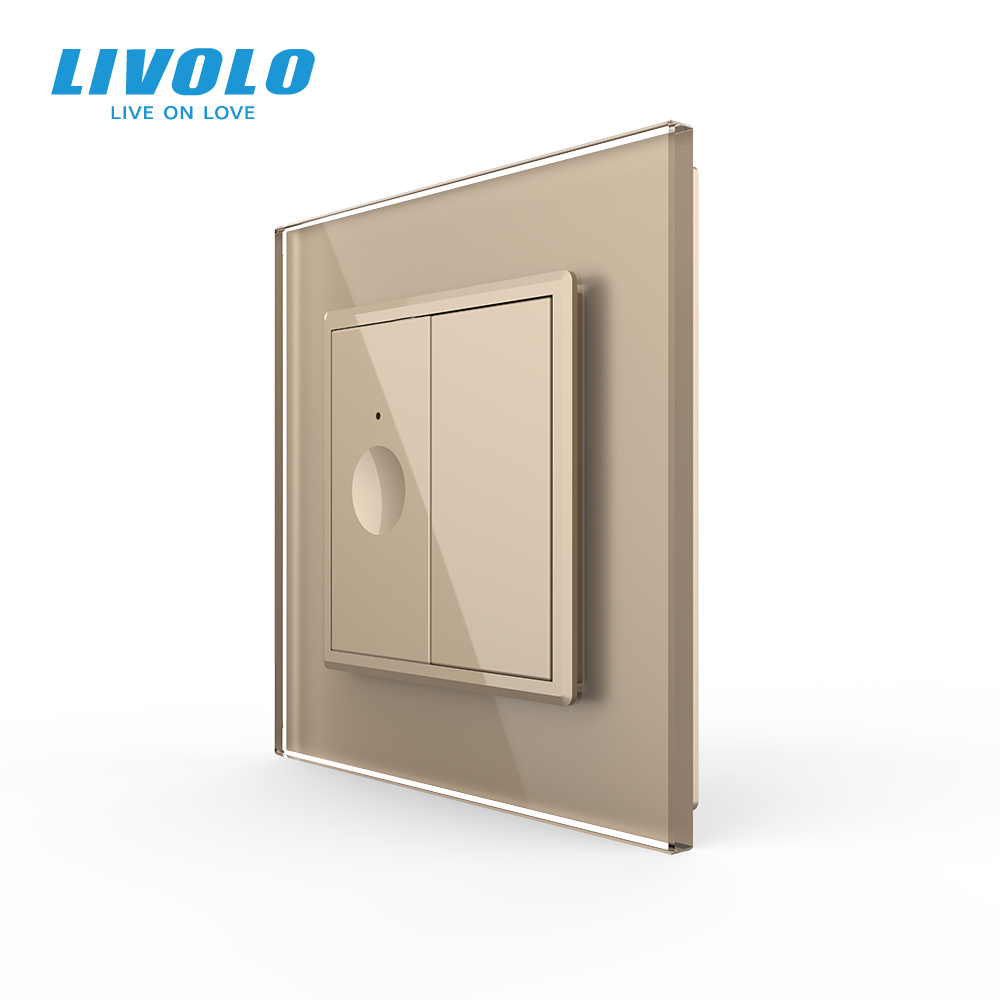

Upgrade your home with the LIVOLO C7 Gold Touch Switch, featuring a sleek tempered glass surface and an elegant gold finish. This single-control switch adds a touch of luxury to any room, with a responsive touch panel that makes toggling lights effortless. The built-in two-color LED indicator and buzzer provide clear status feedback, enhancing convenience and safety. Perfect for modern living spaces, this switch combines timeless design with reliable performance, seamlessly integrating into your daily routines. Experience the comfort of smart home aesthetics without complex setup – just simple, intuitive control.
Product Composition
• LIVOLO | C7 2-Gang 4-Position Gold Frame
x1
• LIVOLO | 1-Gang Single-Control Touch Switch Gold | Small Face (Neutral Wire)
x1
Technical Specifications
Brand
LIVOLO
Series
C7 EU Standard
Panel Style
Frame glass
Gang/Position
2 Gang 4P
Way
1 Way
Smart Type
Basic
Function
Switch
Material
Tempered Glass
Panel Dimension
151mm × 80mm × 8mm
Dimension
45mm*22mm*43mm
Voltage
100-240V~ 50/60Hz
Status indicator
Two-color LED light + buzzer
Temperature and humidity
-10℃ ~ +40℃
Load
5A
Flame retardant shell
Longevity
100,000 times
Minimum load
5W
Installation Orientation
Horizontal/Vertical
Panel Color
Gold
Compatible with standard round or square wall boxes
All products require installation in round/square wall boxes with a minimum depth of 40mm.
c7_box_0c7_box_1c7_box_2c7_box_3c7_box_4c7_box_5c7_box_6

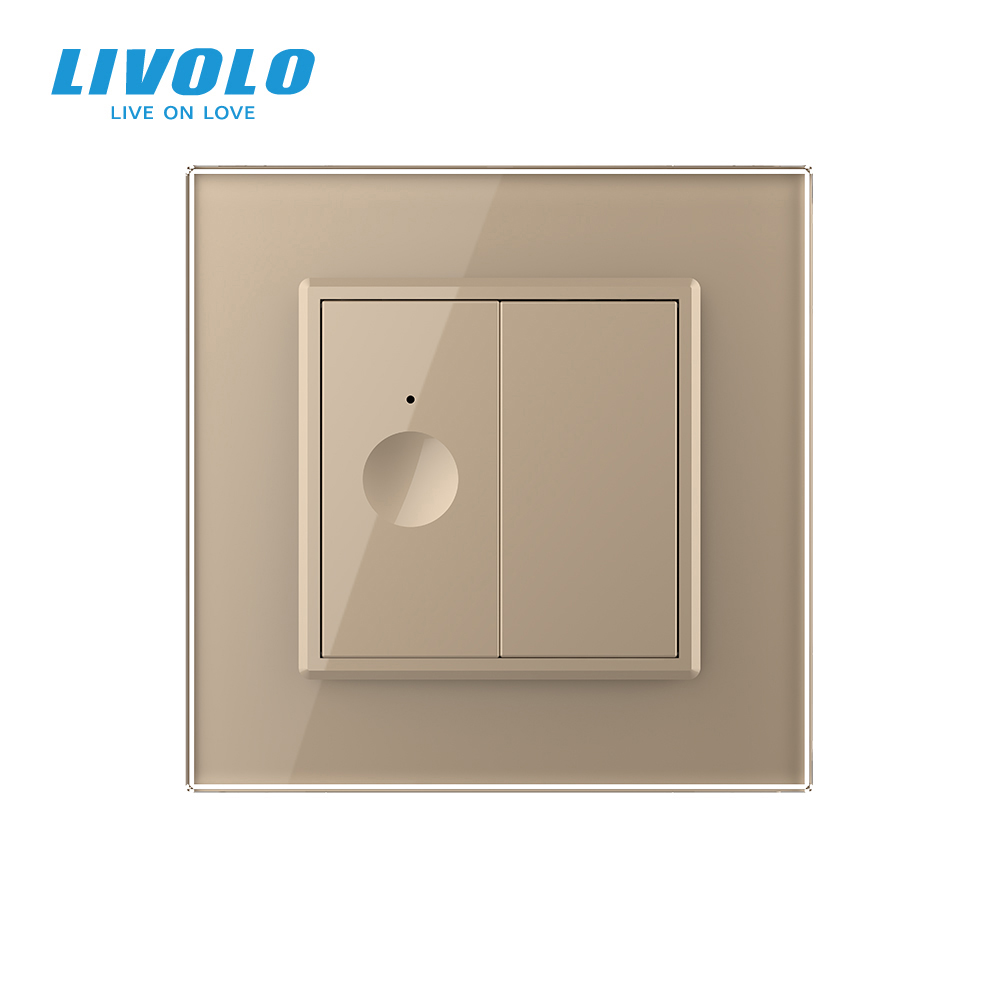

Touch Switch_front_view

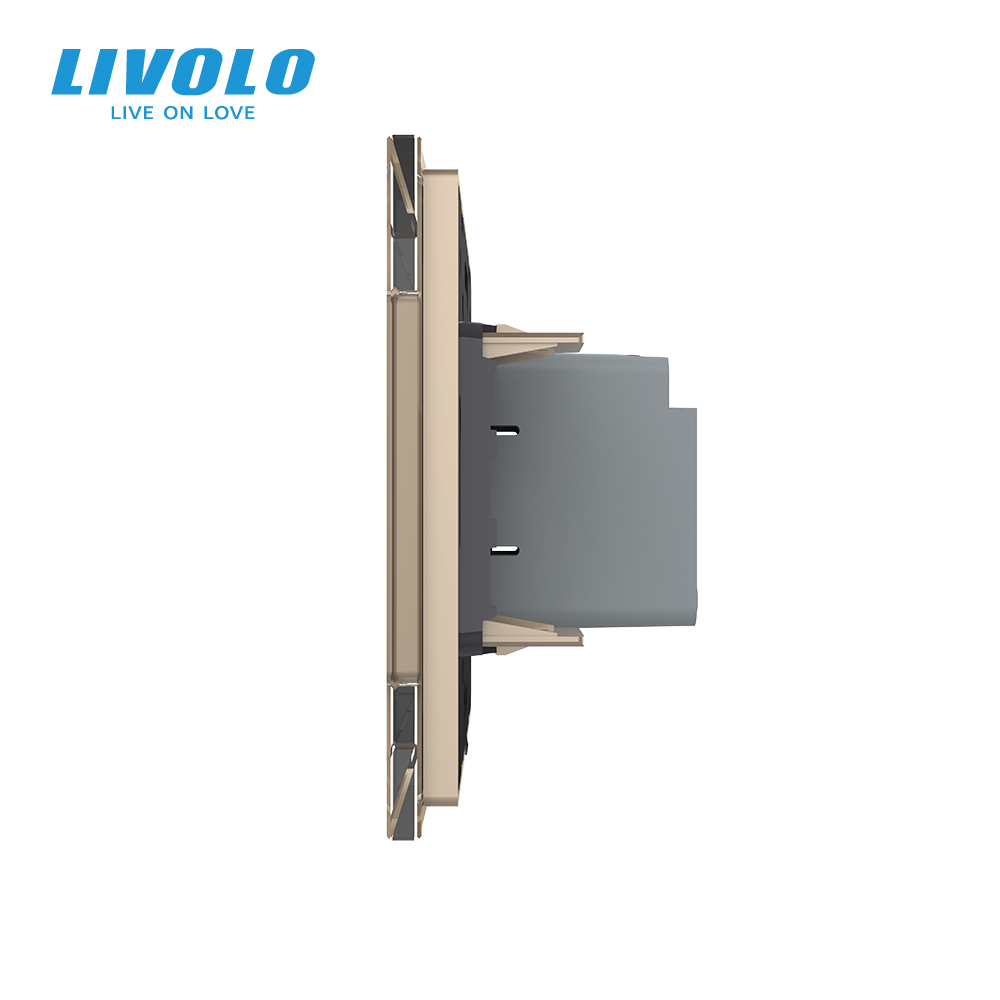

Touch Switch_slide_view

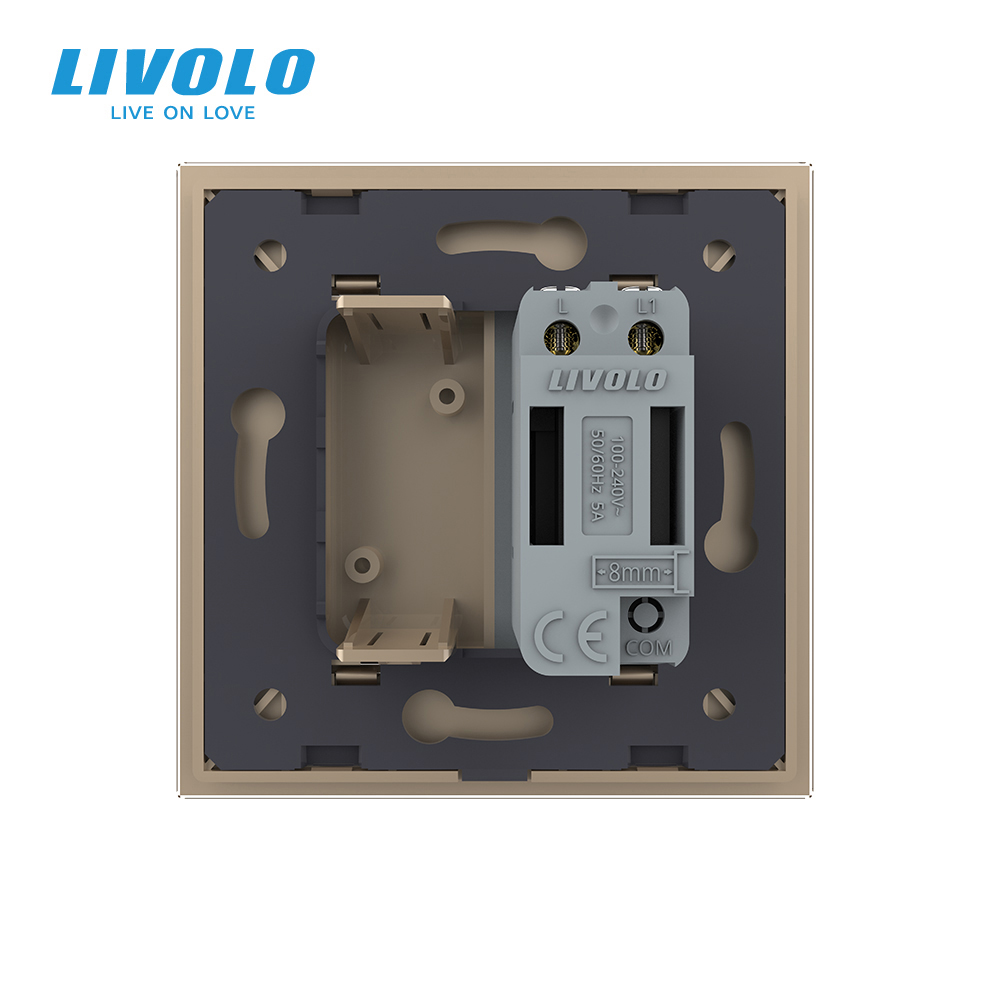

Touch Switch_back_view
