Touch Switch
VL-C701/01/01/01/01-10WG
Color
Series
C7 EU Standard
C9 US/AU Standard
A8 US Standard
B6 UK Standard
Panel Type
Full Glass
Frame glass
Switch Button
1 Gang 2P
2 Gang 4P
3 Gang 6P
4 Gang 8P
5 Gang 10P
Smart
Basic
Wi-Fi
EC
2 Way
1 Way
2 Way
Function
Switch
Curtain Motor
Advantages
Glass touch controlsModern DesignElegant hotel-style designBreathing LED IndicatorEasy to useSmart Home
Product Description
Elevate your daily living with the LIVOLO C7 white glass touch switch, a perfect blend of elegance and functionality. This 5-gang panel allows you to control multiple lights or appliances from a single, sleek interface. Whether managing the living room ambiance, kitchen lighting, or office zones, the responsive touch controls offer instant feedback with a dual-color LED indicator and soft buzzer. The tempered glass surface not only adds a modern hotel-style aesthetic but is also easy to clean and highly durable. Designed for safety and longevity, this switch integrates seamlessly into any smart home setup, providing reliable performance and peace of mind for your family.
Product Composition
• LIVOLO | C7 5-Gang White Glass Panel (5 Individual Touch Switches)
x1
• LIVOLO | 1-Gang 1-Way Touch White Functional Module
x5
Technical Specifications
Brand
LIVOLO
Series
C7 EU Standard
Panel Style
Full Glass
Gang/Position
5 Gang 10P
Way
1 Way
Smart Type
Basic
Function
Switch
Material
Tempered Glass
Panel Dimension
364mm × 80mm × 8mm
Dimension
45mm*22mm*43mm
Voltage
100-240V~ 50/60Hz
Status indicator
Two-color LED light + buzzer
Temperature and humidity
-10℃ ~ +40℃
Load
5A
Flame retardant shell
Longevity
100,000 times
Minimum load
5W
Installation Orientation
Horizontal/Vertical
Panel Color
White
Compatible with standard round or square wall boxes
All products require installation in round/square wall boxes with a minimum depth of 40mm.
c7_box_0c7_box_1c7_box_2c7_box_3c7_box_4c7_box_5c7_box_6

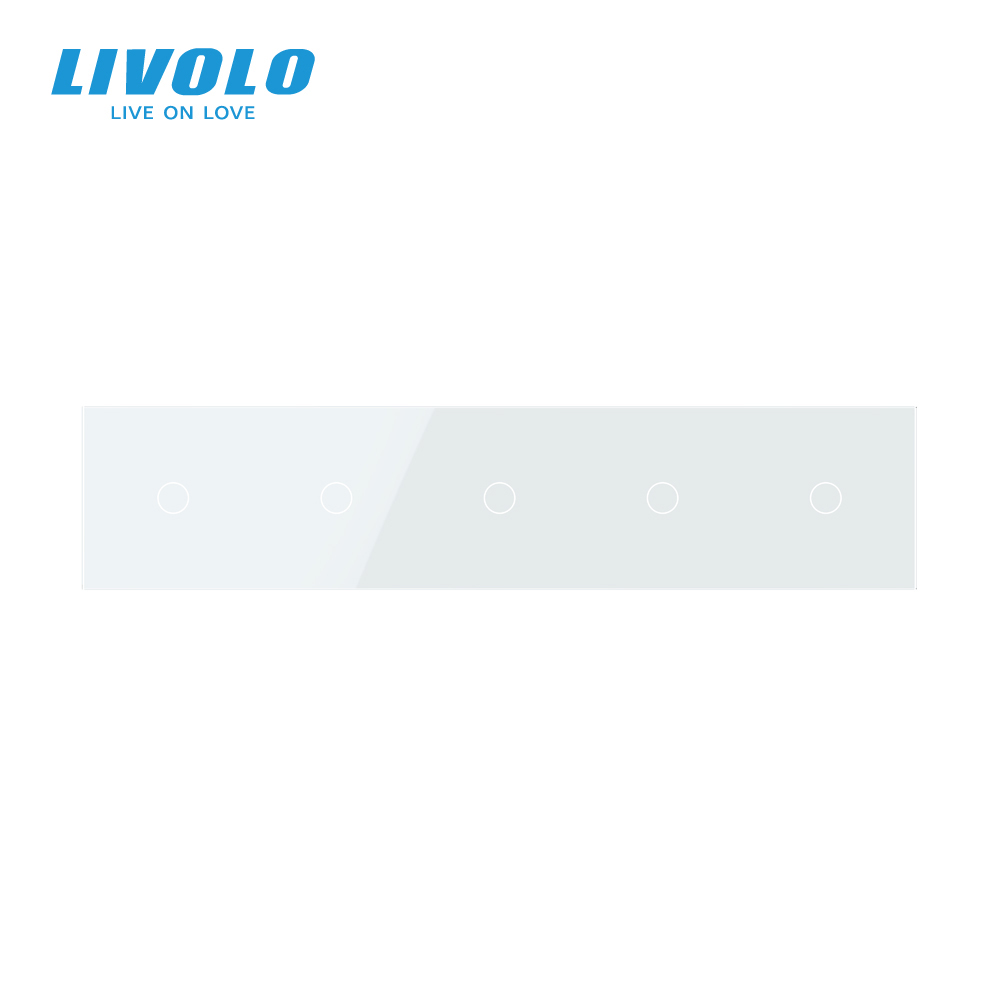

Touch Switch_front_view

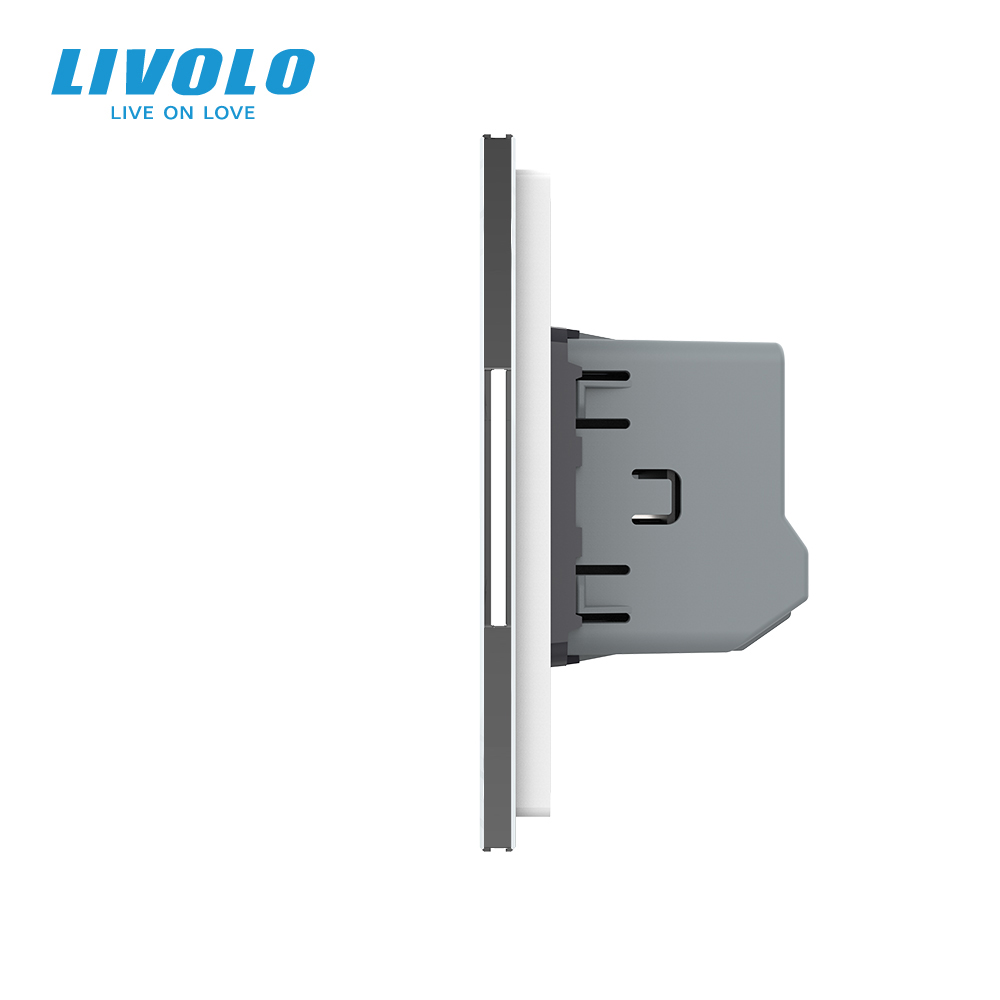

Touch Switch_slide_view

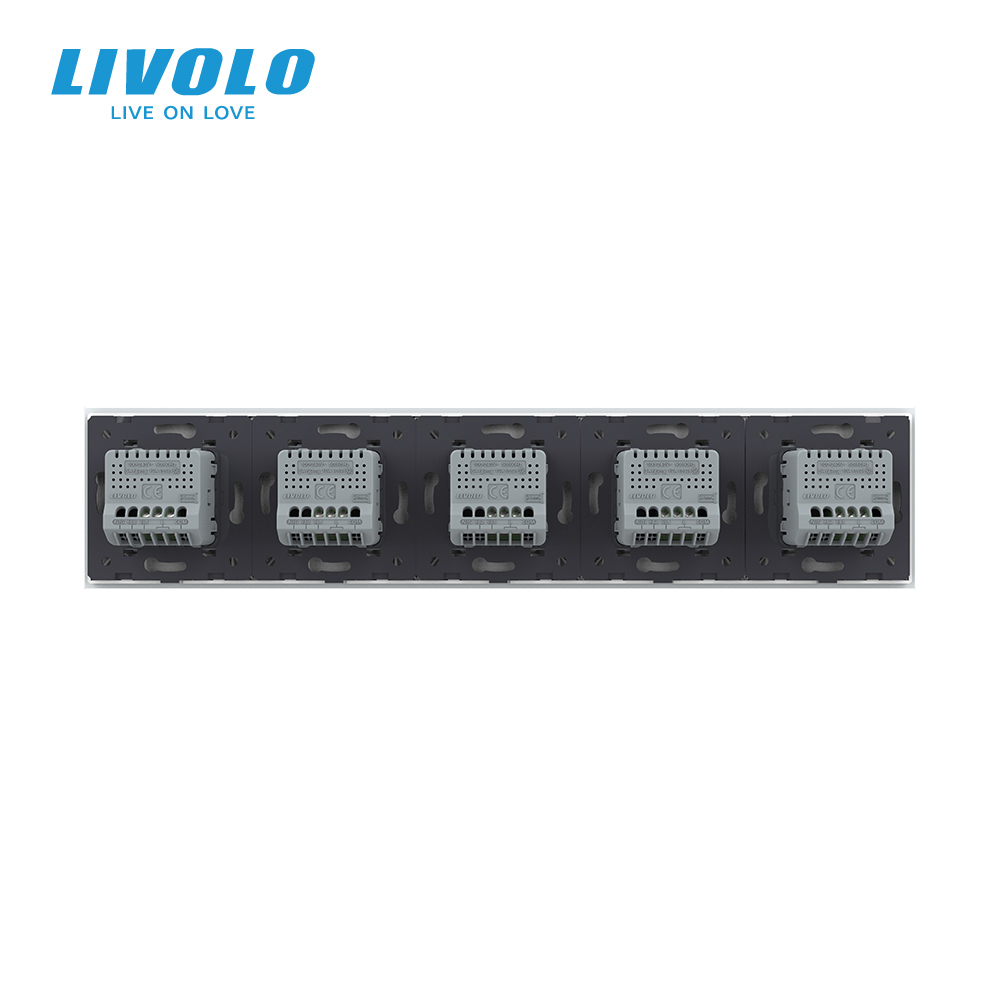

Touch Switch_back_view
