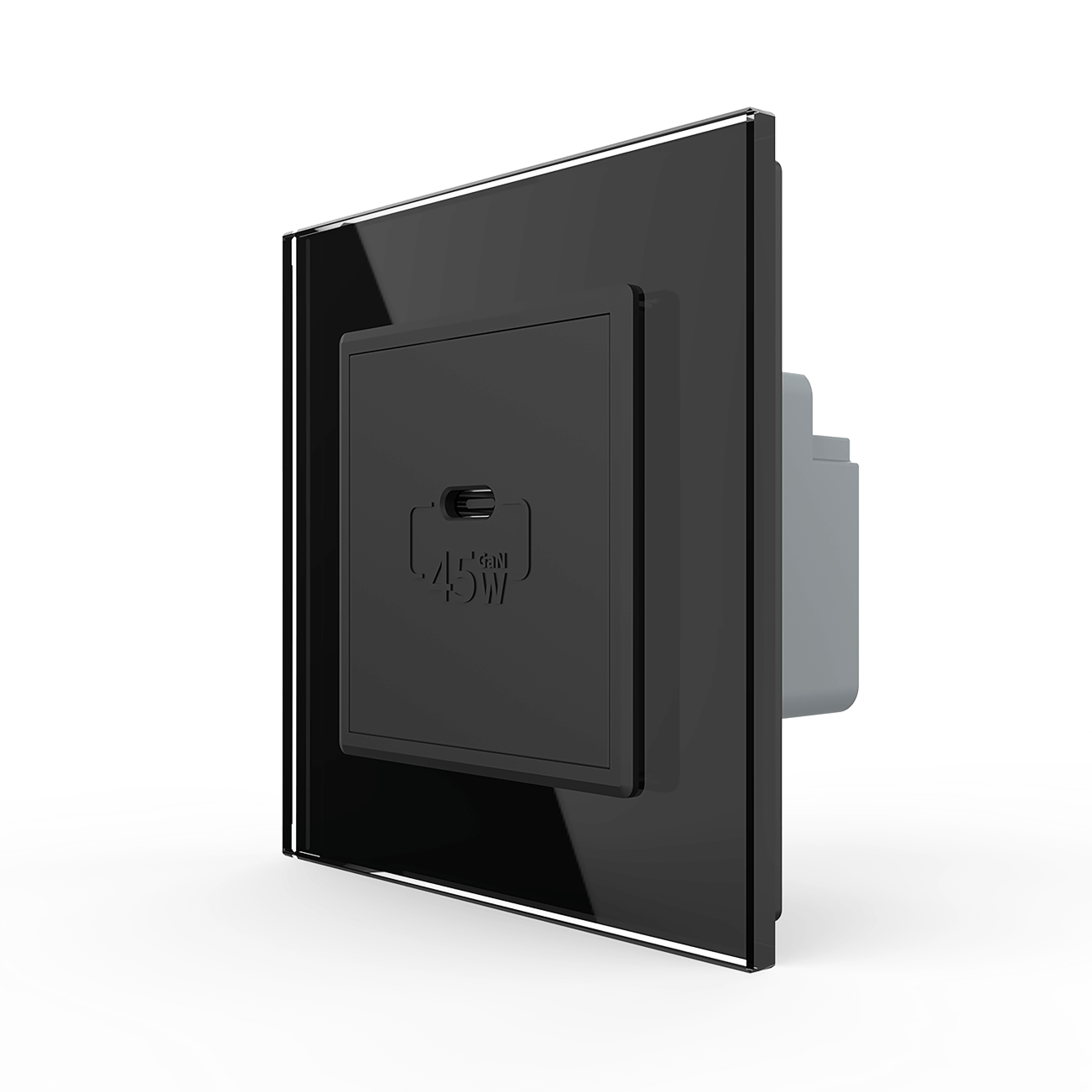

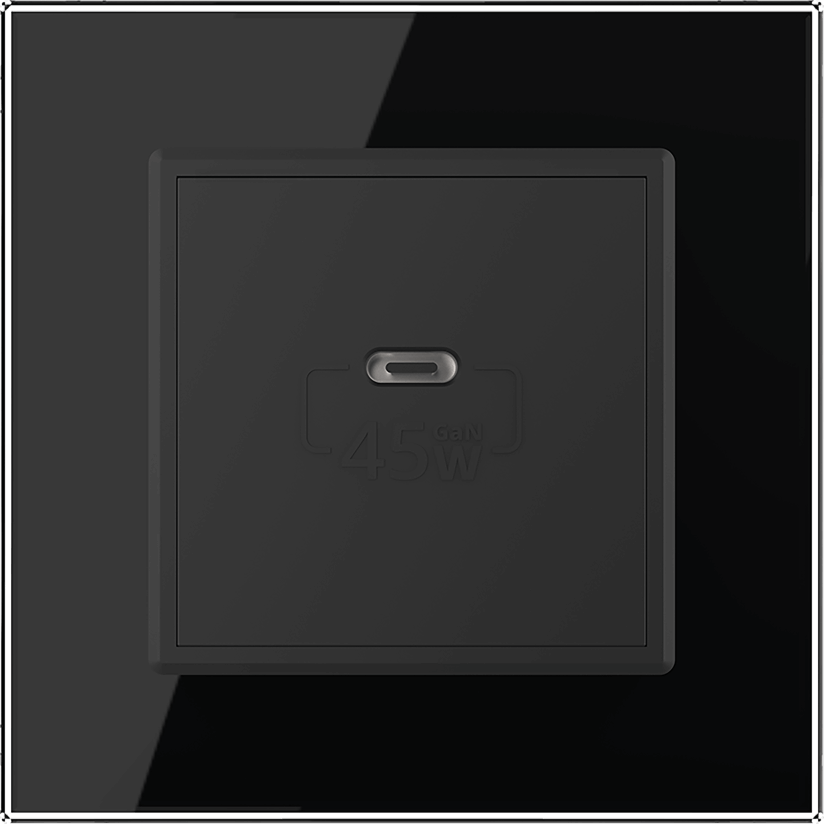

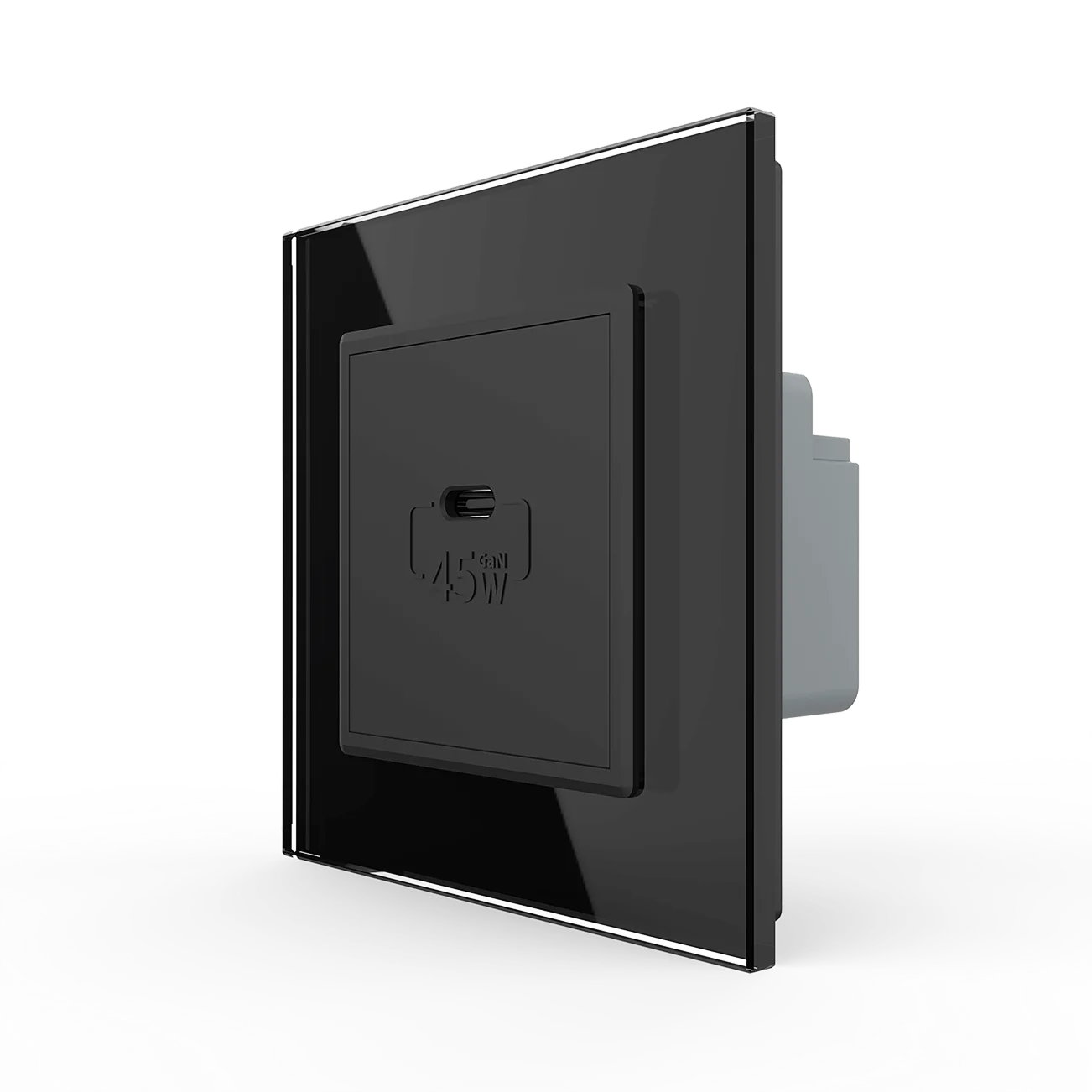

USB-C 45W Socket
VL-P7E-2B1x VL-FCUC-2BP
Color
Advantages
Directly available from stockGlass touch controls45W Fast ChargingFull Protocol SupportGaN TechnologyModern Design
Product Description
LIVOLO 45W USB-C fast charging socket uses diamond cutting technology to carve three-dimensional crystal diamond edges. The tempered glass and frosted texture shell collide to create light and shadow layers, integrating rational aesthetics into the context of modern technology. It is compatible with PD/QC/HUAWEI FCP/Samsung AFC/APPLE 5V2.4A/BC1.2 full protocols, dynamically matching 5V3A to 20V2.25A power peaks in milliseconds, and providing 45W fast charging for cross-brand devices. The PC flame-retardant base builds a safety line of defense, the minimalist form adapts to multiple office/home scenes, and the frameless embedded design reconstructs the aesthetics of space.
Product Composition
• LIVOLO | Panel | Black | Single frame glass panel
x1
• LIVOLO | Module | Black | 45W USB-C socket
x1
Technical Specifications
Brand
LIVOLO
Panel Color
Black
Material
PC Flame-Retardant Material
Dimensions
80 x 80 x 4mm
Installation Depth
32mm
Voltage
100-240V AC, 50/60Hz
Neutral Wire Required
Yes
Rated output for type-c
5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
Protocol
Supports PD, QC, FCP, AFC, APPLE 5V/2.4A, BC1.2 DCP
Relative Humidity
95% RH
Operating Temperature
-10℃ to +40℃
Wall Box Type
Round/Square (Mounting Hole 60mm)
Applicable to
Single Wall Box
Installation Orientation
Horizontal/Vertical
Compatible with standard round or square wall boxes
All products require installation in round/square wall boxes with a minimum depth of 40mm.
